I'm a complete newbie to woodwork - please bear with me!

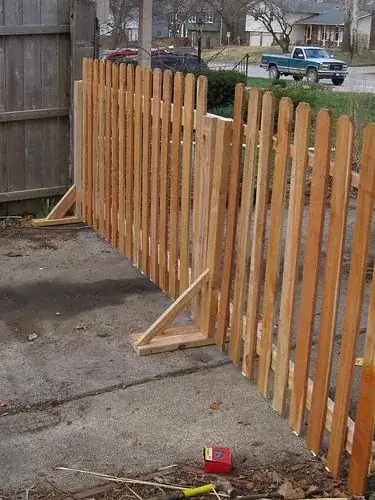

I'm trying to build a free-standing fence or barrier that will sit on top of concrete similar to this picture:

fence

The fence I want to build is a bit taller - 6-8ft. How wide does the "feet" of the fence have to be to keep it from falling over in the wind? I'm thinking about putting support braces in the photo like the picture - do they have to be on both sides of the fence and what size and height does the brace have to be?

PressingOnAlways
  • 141
  • 4
  • If the wind will come from both sides, you need feet on both sides. Size of feet depends on how much wind you expect, what the design of the fence I'd (how much wind it will catch), and how low you can make the center of gravity. – keshlam Aug 23 '16 at 23:48
  • 1
    Actually, you might get better answers to this question over in the Home Improvement area (DIY.StackExchange.com). – keshlam Aug 23 '16 at 23:49

2 Answers2

3

How wide does the "feet" of the fence have to be to keep it from falling over in the wind?

There are too many unknown variables to be able to get a definitive answer on how long the "feet" need to be, but if you guestimate the dimensions of the fence in the photo and multiply up to your possible heights it would at least give you a starting point.

I'm thinking about putting support braces in the photo like the picture - do they have to be on both sides of the fence and what size and height does the brace have to be?

Yes you need braces, yes they need to extend outwards on both sides of the fence because wind loading can come from either side.

My guess is if you make the fence the full 8' tall and scale the supports up the feet would end up much too long to be practical. Anything much longer than those shown could be awkward to move around.

As an alternative you could add weight to the bottom of the fence, with concrete blocks1. I'd suggest you not permanently attach them as that would make the fence far too difficult to move around, but instead arrange things so they can be moved separately.

You might try a combination of both these things, with feet approximately the same as those in the photo but with weights added on top to make the design more bottom-heavy.

(1) At the most simple you could use existing concrete building blocks but if you want to make something that fits the supports of your fence you could cast your own blocks to neatly straddle the "feet" using a form. This form can be a simple plywood box, well lubricated or covered in plastic. A full guide to doing this is beyond the scope of this SE but there are now many guides online to casting concrete at home. Just as a design suggestion, I think you'd want to cast in a piece of bent rebar on the top or on one or both sides to act as a handle.

If you go ahead with casting a better system would probably be to have the posts of the fence simply sit into hollows formed in cast concrete blocks, so the fence would stand much the same as when it's set into the ground conventionally.

Graphus
  • 65,691
  • 3
  • 50
  • 139
  • What angle does the braces have to be? Does it have to be 45 degree angles or can it be 30/60 to make the legs less wide? Does that affect the strength of the brace? I think I'm going to go with your suggestion in adding weights at the bottom. – PressingOnAlways Aug 26 '16 at 14:46
  • @PressingOnAlways. I don't think the brace has to be 45° but I think that angle is considered the best compromise if other factors don't dictate whether steep or shallow would be preferred. Firm joints throughout are probably more important than the angle of the brace. – Graphus Aug 26 '16 at 16:25
1

Don't try to guess how much wind will force your fence and how wide feet would be needed and how much weights adds to the equation.
Instead figure out a way (construction) to adapt (change) the feet (and weights) to what you observe (learn).
