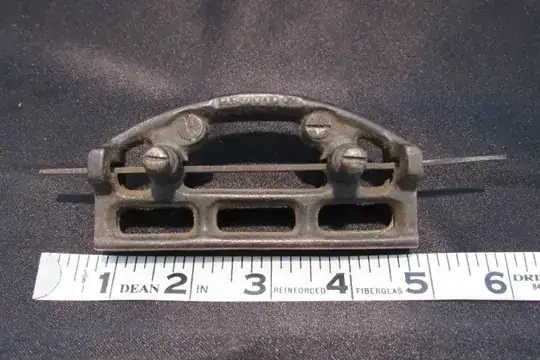

I am trying to find out what this vintage woodworkng tool is called. It holds a small file. It seems to be cast iron. It does have screws to open & change files. Any ideas? PAT. Jan. ? 1891 No makers marks.
Asked
Active
Viewed 941 times
10
Matt
- 20,188
- 41
- 99
- 202
-
Judging by the type of file (very fine teeth) I'd suspect that it's not for wood. – Mar 02 '16 at 20:13
-
1Do you have a photo of the other side? – Mar 02 '16 at 20:15
-
+1 just for providing an excellent quality photo with the tape measure for scale! Seriously, can we put this in the Hall of Fame for how to ask an "Identify this thing" question? – FreeMan Mar 03 '16 at 16:38
2 Answers
13

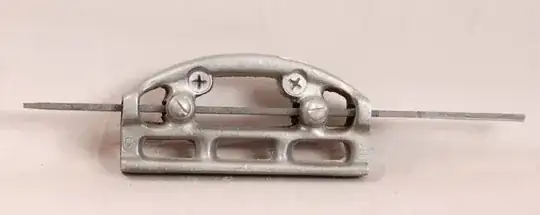

You have there what's called a saw jointer. The one below is very similar. The site linked as the source says it's similar to a Stearn's model, so that might be what you have.
(source)
These are used to joint (flatten) the teeth of a hand saw to one level. After jointing, one would then sharpen each individual tooth such that the points are now at the same level as just jointed.
Here's a YouTube video that shows the sharpening process in great detail. You can see the author explaining the use of a homemade jointer at 26:16 and use it at 51:39.
grfrazee
- 12,180
- 1
- 34
- 62
-
1Looks like it might akso work for initial filing of a scraper edge, with a finer file... – keshlam Mar 02 '16 at 23:32
-
@keshlam, I don't see why not. Scrapers are small enough that I usually just do them by hand. – grfrazee Mar 03 '16 at 14:04
1
I'd say that it's a cross-cut saw sharpening tool.
https://www.etsy.com/listing/266146164/antique-cast-iron-raker-gauge-file
isherwood
- 246
- 1
- 4
