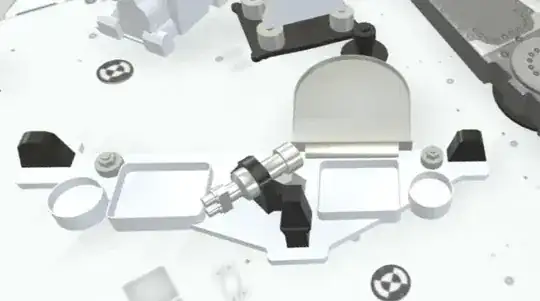

I have been trying to figure out what this arrangement is for.

Could it be where the mast had its 'face' buried prior to deployment?

The various cups seem to fit exactly with lenses and positioning lugs on the masts face. If so the visible cutter must have severed a hold down cable.

Am I on the right track?

uhoh
  • 148,791
  • 53
  • 476
  • 1,473
giles tester
  • 251
  • 1
  • 9
  • That looks like one of those pyrotechnic release mechanisms too (shown here from this answer) – uhoh Mar 01 '21 at 09:16
  • 1
    thanks for the title edit uhoh....after studying many pics of the mast face and that cup-like arrangement.it all fits together perfectly.....does anyone agree ? – giles tester Mar 01 '21 at 09:29
  • 1
    First thing that came to mind: Geee, those are going to fill with water if it rains. Next thing that came to mind: This is Nasa, they surely have that one figured out. :-) – Diego Sánchez Mar 01 '21 at 18:42

1 Answers1

12

Lens covers and attachment/deployment infrastructure for the camera mast.

The mast hosts 2 round Navcams on the sides, two rectangular Mastcam-Z cameras, and one large Supercam with half-circle top "archway-like" border.

enter image description here

Compare: The image taken using the 3D model from NASA site, mirrored by me so that the correspondence is obvious.

enter image description here

During descent the mast was tucked in. It seems like one of the pyrotechnic cutters was used to ensure it would be released.

enter image description here

SF.
  • 54,970
  • 12
  • 174
  • 343
