Brian Tompsett gave a detailed explanation of the advantages of the trussing in his answer to the question Why do the Russians use these fence-like interstage fairings?

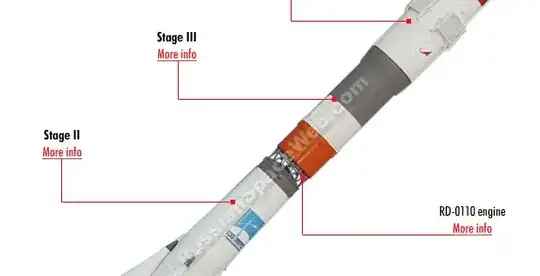

The gap between Stage II and Stage III in this depiction depicts the interstage trussing.

enter image description here

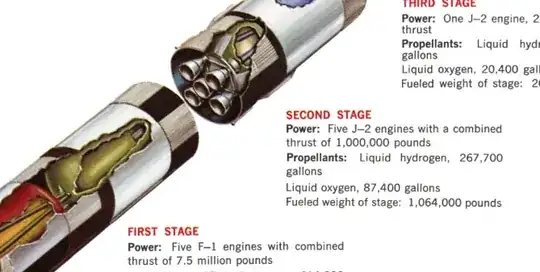

Other than the inefficiency in streamlining and drag, are there other disadvantages to the trussing compared to the interstage fairing of the Saturn V? (Fairing-the hollow metal cylinder surrounding nozzles at the bottom of the second stage in the following depiction)

enter image description here

Bob516
  • 6,917
  • 3
  • 27
  • 67

1 Answers1

1

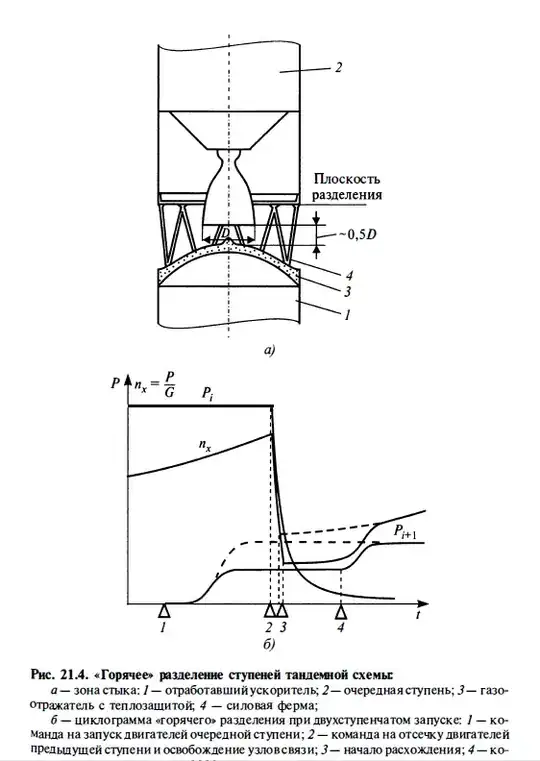

'Hot staging' like it is done on Sojus rockets requires the top side of the lower stage to be isolated using a small heat shield, that may slightly reduce payload.

Also, when hot-staging, separation has to be well-timed - too late, and the upper stage cannot ignite as the engines of the lower stage have stopped burning, too early, and the rocket may lose a significant amount of DeltaV.

enter image description here

Angel Sachse
  • 346
  • 1
  • 8
