Why does the Apollo reentry trajectory show a few climbs?

Question

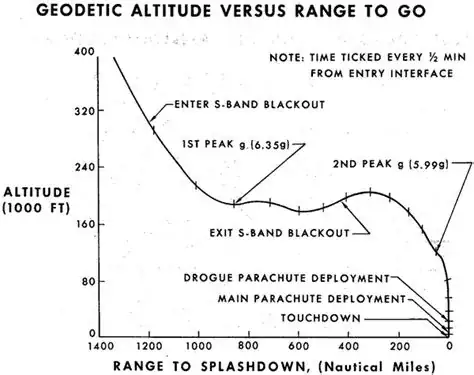

In this answer the following graph is displayed:

It shows two slight increases in altitude (after 1st peak g and at the end of the blackout). For me, it looks like zoom climbs (trading kinetic energy (velocity) for potential energy (altitude)) made to slow down the space craft, but I cannot find any evidence.

What is the purpose of these climbs? Is it to slow down the spacecraft? Is it a common maneuver used during reentry (i.e. is the Apollo spacecraft the only one performing such maneuver)?

There's a lot of confusion about this - you'll see "aborted skip entry", "double dip entry", etc, etc. This is a great question and I'd love to see somebody write up the definitive answer. Sadly I'm not that guy. +1 — Organic Marble, Jul 11 '19 at 13:55
Not directly on point, but this Instrumentation Lab paper on the reentry guidance system has some interesting context: https://www.ibiblio.org/apollo/Documents/R-415%20Apollo%20Reentry%20Guidance.pdf — Bob Jacobsen, Jul 11 '19 at 14:10
I'm also not that guy, but that guy might enjoy reading Apollo Experience Report: Mission Planning for Apollo Entry. — Russell Borogove, Jul 11 '19 at 16:15
Have a look at What are the three peaks in this Apollo reentry heating plot? I think there may be some connection. — uhoh, Jul 12 '19 at 02:46

ANone · Accepted Answer · 2019-07-11T12:32:50.923

4

Certainly trading kinetic energy for potential energy is an inevitable part of the process. In general this is important in controlling heating and g-forces. A fully ballistic re-entry would have only one (high) max g-force. Attempting to "pull-up" to achieve this is pretty universal. Its worth noting that there is nothing special about an ever-so-slight inflection of the trajectory, its all a spectrum.

That said, its unlikely that bobbing is ever the truly optimal solution, but the causes to do so range from: adding scope for altering trajectory, to being conservative on risking dipping too deep too soon and having too high peak g-force or heating.

As the actual trajectory is a result of all these competing factors, and the (in-)accuracy, of implementing them its unlikely you'll get a short and accurate answer for exactly "why" a particular path was taken.

edited Jul 11 '19 at 12:32

answered Jul 11 '19 at 10:48

ANone

3,432
9
21

1

This is pretty generic- the question is more specific to that flight. All of those factors couldve contributed but theres no source linked here that states definitively that they did. Possibly a NASA writeup on the trajectory would be published context that could definitively answer OP. – Magic Octopus Urn Jul 19 '19 at 21:51
@MagicOctopusUrn: it seems a generic question to me. the actual question bit is: "What is the purpose of these climbs? Is it to slow down the spacecraft? Is it a common maneuver used during reentry (i.e. is the Apollo spacecraft the only one performing such maneuver)?" – ANone Jul 22 '19 at 14:02
