The Space Shuttle and the Soviet/Russian Buran have launched vertically, and their wings were exposed to the full load of aerodynamic forces during the launch. Stability may come from many factors, but the location of the wings near the bottom of the whole launch assembly certainly must have helped.

On the other hand, the X-37 was launched into space at the top of a long rocket where lift forces could have presented a big stability challenge, so it was launched protected from aerodynamic forces inside a fairing.

Are the US shuttle and Buran the only space planes to launch vertically to orbit with wings exposed?

below x3: X-37 with part of fairing, from here, Buran from here, and Space Shuttle Atlantis STS-79 from here.

enter image description here

enter image description here

enter image description here

This one doesn't count, as it didn't go into orbit, but it deserves an honorable mention. From the question ISRO's space plane on top of of a rocket - how unstable was it?, here are some photos of ISRO's RLV-TD.

In this case it is really a passive payload and does not participate in the launch. According to this answer:

From what I have read in journal papers related to RLV-TD so far control surfaces on winged body don't play any role during ascent phase.

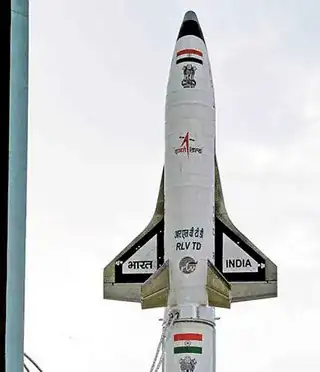

ISRO's RLV-TD Space Plane launch ISRO's RLV-TD Space Plane launch

above left: From Ars Technica, photo credit: ISRO. right: From NewScientist, photo credit: ISRO.

asdf THESE ARE ORIGINAL:

Community
  • 1
uhoh
  • 148,791
  • 53
  • 476
  • 1,473
  • 1
    You're right about the stability issues. I see Dream Chaser is now proposing to launch encapsulated. Check out the fins on this Titan in this Dynasoar concept art! https://upload.wikimedia.org/wikipedia/commons/thumb/4/40/Dyna-Soar_on_Titan_booster.jpg/220px-Dyna-Soar_on_Titan_booster.jpg – Organic Marble Mar 20 '17 at 11:24
  • 1
    @OrganicMarble That's beautiful! I'm always looking for a way to use the space-art tag, I'll have to think of something for that :) Also, check out this video https://youtu.be/rJtHt7p-EKI – uhoh Mar 20 '17 at 11:36
  • 1
    @OrganicMarble now here I go, productivity for the rest of the day shot. http://www.collectorsweekly.com/stories/181391-rare-vintage-boeing-x-20-dyna-soar-usaf – uhoh Mar 20 '17 at 11:45
  • 1
    @OrganicMarble yep, that's it for the day. https://i.stack.imgur.com/9qHeE.jpg – uhoh Mar 20 '17 at 11:47
  • 1
    @OrganicMarble nope, now this is it for the day. https://youtu.be/b0_kaOP_2wU - nope, now I've gone and asked this follow-up question. – uhoh Mar 20 '17 at 12:07
  • 1
    There was also ASSET but it was suborbital. http://www.boeingimages.com/Docs/BOE/Media/TR3_WATERMARKED/7/0/3/c/BI41684.jpg Looks cool though. – Organic Marble Mar 20 '17 at 13:10
  • Dream Chaser's crewed version will launch without a fairing; the cargo version needs a fairing to meet CRS-2 guidelines and carry an expendable module behind it. It hasn't launched yet; would it count as an answer to this question? – DylanSp Mar 20 '17 at 14:44
  • @DylanSp It makes a nice helpful comment, but not as an answer. But I will adjust the wording of the title, and make it past tense to match the body of the text and it clearer. Thanks for asking, and don't forget to check out all of the space agencies! – uhoh Mar 20 '17 at 14:48

2 Answers2

13

Yes. Buran and the shuttle are the only ones which entered orbit, launched with wings exposed, and launched vertically.

Other such designs have also been serious considered. Boeing's X-20 got the closest to flying. It was cancelled shortly after assembly began. The MAKS was cancelled by the collapse of the Soviet Union. The MAKS program started the same year Buran flew, so I'm guessing they weren't satisfied with Buran. Incidentally, I would argue that Buran was also cancelled by the collapse of the Soviet Union and would otherwise have likely flown again.

Several horizontal air launch space planes have flown to suborbital trajectories. If you count Pegasus as a space plane it actually did achieve orbit but was not designed to survive reentry. Several scale models have launched vertically with wings exposed but only went into suborbital trajectories, though in some cases the apogees were high enough to make the reentry speed comparable to the shuttle.

Schlusstein
  • 2,157
  • 9
  • 30
  • @Schlusstein thanks for mentioning MAKS, that is interesting. I have a followup question! – Organic Marble Mar 20 '17 at 16:01
  • Barring implausible secret military launches, I'm quite sure. – Schlusstein Mar 20 '17 at 16:04
  • I just noticed that a half-day after asking this question, I asked the question ISRO's space plane on top of of a rocket - how unstable was it? This was launched by an attached rocket, not under it's own power. But then again that's partly true for both of these as well. Do you think you should add this to your answer? – uhoh Mar 21 '18 at 16:28
  • I recall a small spaceplane design that was meant to be launched as three nearly identical spaceplanes stacked together, two of them acting as boosters and returning to the launchpad, third reaching orbit. One special thing about it was that it was the only real-life spacecraft that used asparagus staging. IIRC it never flew, so again "doesn't count" but I guess it should earn a mention. – SF. Jun 02 '18 at 01:46
4

Buran, the Russian attempt at a Space Shuttle of course also launched the same way. But it was only a single launch ever.

geoffc
  • 79,523
  • 12
  • 227
  • 419
  • 2
    I misread an article and thought it had not gone to orbit, I've edited my question to include it. I'm looking for something besides the Space Shuttle and Buran. Thanks for pointing it out! – uhoh Mar 20 '17 at 10:15
  • The Buran was unmanned but it orbited twice. It was the prototype Enterprise that never flew. – Mazura Nov 09 '19 at 02:51
