While a booster on the shuttle had a bit more than twice the thrust of the shuttles engines at take-off, I'd venture a guess that it produced on the order of a thousand time more visible light. In fact, this may be an example of both the brightest and dimmest large rocket engine exhausts for heavy, sea-level launch.

Are there any tables, or approximate data for the relative visible-light brightness of major rocket engines? I'm not looking for IR or UV or anything of particular military or defense interest, just the ordinary commercial and civilian rockets that people can watch launch.

What originally got me thinking about this is that this question was marked as a duplicate of this question within 2 hours, apparently with the idea that any old rocket launch can be seen for about the same distance, perhaps about 100 km away.

I was originally wondering if there is really a "standard rocket brightness" or if some rockets used today are still far brighter or dimmer than others, but as @RussellBorogove points out in comments a large number of launches include solid fuel boosters which tend to be very bright.

So I'd like to ask this question about brightness on the basis of individual propellant combinations, not total launch brightness.

My guess is that for a large engine at sea level, the brightnesses rank like this:

SRB > RP-1/LOX > UDMH/N2O4 > LCH4/LOX > LH2/LOX

Am I wrong?

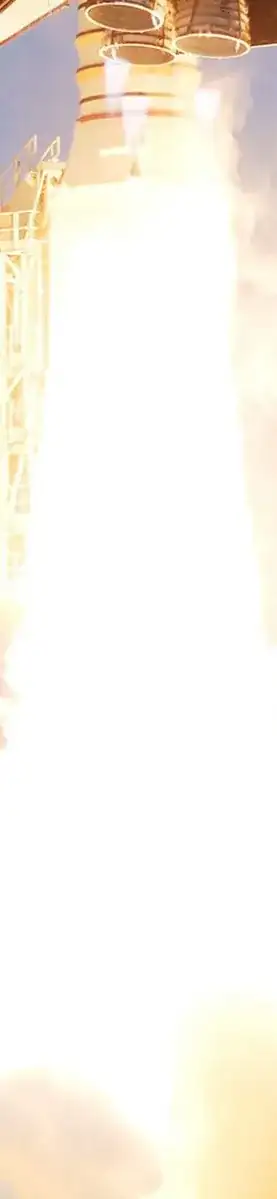

below: Space Shuttle Discovery from here. Scroll aaaaaaaall the way down to get a better estimate of the total brightness. Note that the hydrogen/oxygen flames are so dim that you can still see right through the flames.

enter image description here

Vikki
  • 4,157
  • 2
  • 21
  • 59
uhoh
  • 148,791
  • 53
  • 476
  • 1,473
  • 3
    In my guessing, i've chosen the order of propellant combinations partly based on what I've seen in pictures here in SXSE and on the idea that solids and long-chain carbons have more potential to make soot which incandesces, and H2/O2 is nearly invisible. – uhoh Mar 11 '17 at 17:06
  • 1
    Don't forget the contribution of smoke to visibility http://centripetalnotion.com/images/shuttleshadow.jpg – Organic Marble Mar 11 '17 at 17:22
  • Your premise about H2/O2 flames being "dim" may be flawed. Check out the visibility predicts here for a 2nd stage shuttle. https://www.google.com/url?sa=i&rct=j&q=&esrc=s&source=images&cd=&cad=rja&uact=8&ved=0ahUKEwjO_sfg-87SAhXlzIMKHUs1AQIQjRwIBw&url=http%3A%2F%2Fwww.space.com%2F7173-space-shuttle-launch-visible-east-coast.html&psig=AFQjCNFUEQNwSeQG5DsNJLlpD1m_IdwlmA&ust=1489339286322281 "After the solid rocket boosters are jettisoned, Discovery will be visible ... by virtue of the light emanating from its three main engines. ...the brightness should be at least equal to magnitude -2" – Organic Marble Mar 11 '17 at 17:24
  • 3
    @OrganicMarble "dim" is a subjective word. It's a comparison, but in no way a premise to my question. In this case I've said "so dim that you can see through them" in obvious direct comparison to the SRB exhaust. Even a 100 mA green LED at ~20km is magnitude +0! – uhoh Mar 11 '17 at 18:12
  • 1
    Worth noting that almost all current medium & heavy lift rockets have a kerosene or solid (i.e. bright yellow plume) first stage or booster component. Even the major exception, Delta IV Heavy, uses an ablative nozzle which contributes a little bit of carbon incandescence to its hydrogen-oxygen exhaust plume. – Russell Borogove Mar 11 '17 at 20:34
  • @RussellBorogove ya you are right. That seems to be the case at present at least - boosters are so darn handy and solid fuel so predictable, and it's a little too early to see big LCH4/LOX engines take off yet. I'll modify the question to clarify the focus is on the difference in propellant/engine types, not complete launch vehicles. I'm wondering; have Ariane 5 or Delta IV ever launched payloads sans booster? I hadn't realized there have been only a handful of Delta IV Heavy launches. – uhoh Mar 12 '17 at 04:32
  • I'm pretty sure there exist precise, detailed papers that list brightness of all available propellants and launch systems in great detail. I'm also pretty sure they are classified. – SF. Mar 12 '17 at 12:21
  • 2
    There have been 3 boosterless Delta IV medium launches in 2003 and 2006, prior to the RS-68A engine upgrade, military comm and weather sat missions. I think that configuration is little-used because it's less cost-effective for small payload launches than Atlas V. Ariane 5 can't get off the pad without boosters -- core engine is 1015kN, gross weight at liftoff about 1.7x that. – Russell Borogove Mar 12 '17 at 19:15
  • @RussellBorogove I see what you mean - the Delta IV M+(5,4) in this image of the nighttime WSG-9 launch from here shows clearly the two bright exhaust plumes from the pairs of SRBs on either side (fig 1-2 in PDF), and a dark spot in the middle where the main engine plume is; also can be seen in this 2006 M+(4,2) launch. – uhoh Mar 19 '17 at 03:18
  • peroxide/paraffin is fairly dim too: https://i.redditmedia.com/1ucov-rWERpuO5v-MDIbpb6zpd2to_k6u0WrzXwalbQ.jpg?w=600&s=b95deecc2fa9e5fef5569f760e0eec9c –  Dec 01 '17 at 13:42
  • @JCRM hmm... that's a cool photo; Black Arrow correct? I'm fascinated because I just wrote this comment and this seems like it might be a counterexample. However a candle and a rocket engine are not the same thing. I didn't even consider RP-1/H2O2 in the question. Could you consider posting the photo and a description in as a "supplementary" answer, pointing out that not all RP-1 plumes are bright and sooty? – uhoh Dec 02 '17 at 01:34

1 Answers1

6

The different brightness is caused by the fuel. The liquid fuel rockets burn hydrogen with oxygen, both are gases and the reaction product is hot water vapour, also a gas. But pure gas flames emit very little light, that is why gas mantles are used for camping gas lanterns. The hot solid mesh emits far more light than the hot gas heating the mesh.

The solid fuel boosters contain aluminium powder and an oxidizer. Aluminium and magnesium are known to burn very bright.

The reason is Kirchhoff's law of thermal radiation; the emissivity for visible light is much bigger for solids than for gases.

Nathan Tuggy
  • 4,566
  • 5
  • 34
  • 44
Uwe
  • 48,975
  • 4
  • 121
  • 206
  • LOX/RP-1 burns quite brightly too, though there is no metal. Any idea why? – uhoh Dec 01 '17 at 12:53
  • 4
    @uhoh: Carbon from incomplete combustion, I'd guess, basically the same as in a candle flame. – Ilmari Karonen Dec 01 '17 at 15:13
  • Answers the question "why are some rockets exhausts brighter?" instead of the one asked. –  Dec 01 '17 at 16:21
  • 2
    Carbon, yes -- most engines run fuel-rich. – Russell Borogove Dec 01 '17 at 17:40
  • Different hydrocarbons burn with more or less brightness. Pure alcohol burns with a blue flame and little brightness. But acetylene burns with a white flame with much brightness, it was and is still used for lighting. Methane burns with a blue flame. – Uwe Dec 01 '17 at 21:31
  • 1
    Since kerosene is a large molecule with long carbon chains, and as RussellBorogove points out the engines may be fuel-rich, there is probably plenty of soot, and it is probably the solid particles of soot glowing with thermal radiation. Same exact situation for the wax vapor burning in a candle flame (wax and kerosene are similar) where it's the hot, glowing soot particles that make the light, not individual molecules. – uhoh Dec 02 '17 at 01:30
  • H2O2/RP-1 (as used in Black Arrow) manages a more complete combustion, so its almost soot free flame is less bright. –  Dec 02 '17 at 14:53
  • 1
    Acetylen is a small molecule with a short carbon chain of only two atoms, but it burns bright in air when used in carbide lamps. When burnt with oxygen for welding, brightness is much smaller. – Uwe Dec 03 '17 at 18:54
  • 1
    Despite being a small molecule, acetylene burns with quite a sooty flame, so there are tiny particles of very hot carbon present, which efficiently radiate light. – Steve Linton Jun 29 '19 at 22:22
