What is (or was, if it's no longer in use) the system with lowest launch mass, capable of putting (any) payload in (or reaching) LEO? "How small" did we get with orbital flights?

(and yes, I realize economically that's a rather poor idea; still I'd like to know what was attempted.)

called2voyage
  • 23,710
  • 10
  • 97
  • 147
SF.
  • 54,970
  • 12
  • 174
  • 343

2 Answers2

15

Juno 1 had a payload of 11 kg to LEO from a start mass of 29 t.

Diamant-A had a start weight of 18.4 t, payload 100 kg to LEO.

Black Arrow had a start weight of 18.1 t, payload 100 kg to LEO.

Vanguard, start weight of 10 t, payload 9 kg to LEO.

Lambda 4S had a start weight of 9.4 t, payload 26 kg to LEO.

Caleb was an air-launched missile theoretically capable of attaining orbit. Start weight of 1350 kg, payload 7 kg to LEO.

Project Pilot was an air-launched missile theoretically capable of attaining orbit. Start weight of 900 kg, payload 1 kg to LEO.

Hobbes
  • 127,529
  • 4
  • 396
  • 565
  • Lambda 4S yes could be smallest, but Diamant-A & Black Arrow are just know or famous. Some other rockets in terms of launch weight are smaller than these two : Vanguard (10.05 t) and Scout (17.85 t) USA, Capricornio (15 t) Spain, Haas (16 t) Romania, SLV (17 t) India. In terms of payload it is possible another rocket in development of Australia, AUSROC Nano designed for a 10 kg payload, but of course this isn't opperational and who knows it will ever fly and if its max payload will be 10 kg or more. – Mark777 Jul 11 '16 at 12:39
  • 1
    I arrived at my answer through several iterations, starting with Juno and Diamant. I left them in to give an idea of the playing field. – Hobbes Jul 11 '16 at 12:43
  • 1
    Thanks :) I wonder about thoughts of the pilot of the plane from which Calebs were launched, They had an uncanny tendency to explode on ignition, which would in this case probably mean "adjacent to the airplane". – SF. Jul 11 '16 at 13:02
  • Vanguard 1. 10t launch mass, 1.5kg payload. – Russell Borogove Jul 11 '16 at 14:57
  • Wikipedia has payload at 9 kg... – Hobbes Jul 11 '16 at 15:06
  • 4
    It doesn't seem fair to neglect the mass of the plane for the air-launched rockets. That's like neglecting the mass of stage 1 for a multi-stage rocket. – user2357112 Jul 11 '16 at 18:19
  • @user2357112 It's not part of the rocket equation though. – called2voyage Jul 11 '16 at 20:05
  • Regardless, Lambda 4S is the lightest system that actually achieved orbital insertion of payload. None of the missile systems reached orbit. – SF. Jul 24 '17 at 07:59
  • @SF.: Not anymore! – Vikki Jan 21 '19 at 04:02
  • 1
    Are they sorted by cost? Which was cheapest of the alternatives listed? – Magic Octopus Urn Jan 24 '19 at 02:33
  • 1
    They are in the order in which I found them. Theyr'e also mostly really old projects (from the 1950s-1960s). No idea about the cost. – Hobbes Jan 24 '19 at 07:04
10

The smallest launch system (by total mass) that has actually put something in orbit is the SS-520 (first successful orbital launch 3 February 2018).

  • Start mass: 2,600 kg
  • Payload to LEO: 9 kg

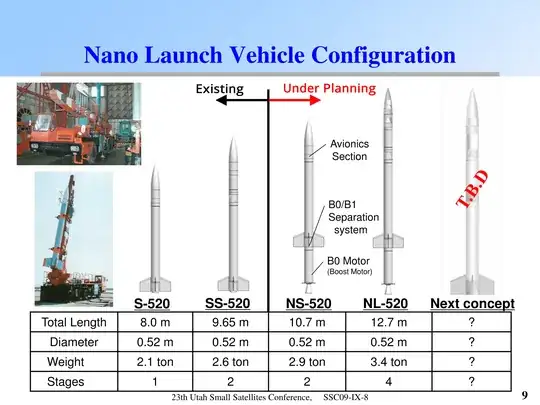

Current design and future designs: Series size comparisons
