What is the mechanism and what medium is used in the actuators to open the legs of the Falcon 9 First Stage on landing?

Tim
  • 174
  • 1
  • 8
andrew
  • 181
  • 1
  • 3

1 Answers1

7

The mechanism is a pneumatic cylinder. The cylinder is actuated by a bottle of high-pressure helium.

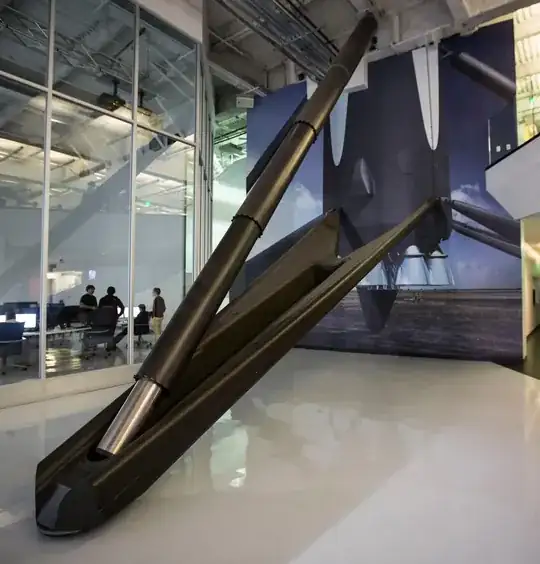

F9 Landing leg

Hobbes
  • 127,529
  • 4
  • 396
  • 565
  • Do you know what sort of fluid is used and how it is pressurised? – andrew Jan 18 '16 at 10:27
  • Huh! I'd swear I heard that the legs are actuated by a pneumatic system powered by high-pressure helium... Was there a change? – radex Jan 18 '16 at 16:37
  • 1
    The spaceflight101 article you've linked to says so: "During flight, the legs are stowed against the rocket body. (...) Deployment is accomplished by a pneumatic system using high-pressure helium." – radex Jan 18 '16 at 16:38
  • 2
    Sorted. It's annoying that the only primary source on this is a photo published on Twitter with a one-line comment. NTRS it ain't. – Hobbes Jan 18 '16 at 18:23
