I'm trying to build a tennis ball machine and I'm using a couple resources to help me out. One of them has the following formula for calculating drag force which I am having trouble interpreting.

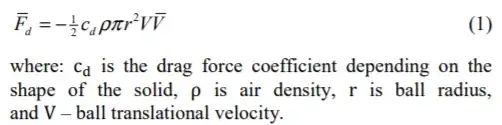

Formula and some Information

The main question I have is what the V with a bar means and the difference between it and the regular V. I am also wondering if there is a special formula for calculating translational velocity. Any help would be much appreciated, and I'm not sure if it helps but cd is given as anywhere between .55 and .85. The air density could be 1.1376kg/m^3 and the radius of a tennis ball is around 3.35cm.

Thanks for your time and help!

G. Smith
  • 51,534
ShinyWhaleFood
  • 3

1 Answers1

3

The main question I have is what the V with a bar means and the difference between it and the regular V.

$\bar{V}$ is the velocity vector. $V$ is the speed, which is the magnitude of the velocity vector. $\bar{F}$ is the force vector. (A more typical notation for vectors is $\vec{V}$ and $\vec{F}$, with arrows instead of bars, or $\mathbf{V}$ and $\mathbf{F}$, using boldface.)

The formula is saying that the direction of the drag force is opposite to the direction of motion, and the magnitude of the drag force is proportional to the square of the speed.

I am also wondering if there is a special formula for calculating translational velocity.

For motion in a single direction, like falling vertically, yes. For two dimensions, I don’t think so; you have to solve the differential equation numerically.
