Are there any tips on shooting with iPhone another screen, like a computer monitor or another phone? Maybe it requires some special lightning?

I'm trying, but it's always too dark or noisy.

Here are shots that I like; I would like to shoot similar photos:

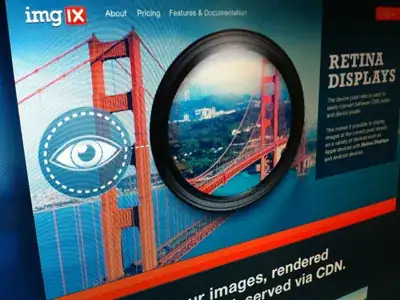

http://dribbble.com/shots/629027-Working-on-new-Imgix-site

http://dribbble.com/shots/628047-Mobile-website-flight-search

Rafael
  • 24,760
  • 1
  • 43
  • 81
Marvin3
  • 293
  • 1
  • 3
  • 7
  • 1
    Could you maybe show shots that you took with your iPhone? Such that people here can see what's wrong with your photos. – Saaru Lindestøkke Jul 03 '12 at 09:48
  • A couple of places to shart would be: http://photo.stackexchange.com/questions/8328/taking-photos-of-computer-screens-reducing-glare-with-s95 and http://photo.stackexchange.com/questions/21294/whats-the-best-way-to-take-a-picture-of-an-lcd-or-crt-screen – forsvarir Jul 03 '12 at 11:20
  • While I don't think this is your main point, I'd like to point out that you should not expect the kind of DOF in the second shot to come out of a mobile phone's camera. The sensor isn't large enough for this. – mivilar Jul 03 '12 at 21:15
  • 1
    Why would you even want to do that? – Fake Name Jul 12 '12 at 12:39

4 Answers4

5

Thankfully LCD/LED screens are much easier to photograph than old CRT screens, but there are still a good number of things that can go wrong:

  • Glare - this is light reflecting on the monitor and obscuring the image, move the camera around so you don't see the reflection or place something between the monitor and light source to block the light.

  • Image too dark/bright - the camera will assume you are photographing something that has middle brightness, a mostly white monitor will be under exposed and a mostly black monitor will be over exposed, with a "real" camera use exposure compensation (or manual mode) to get the brightness just right, with an iPhone tap the screen to focus on a part of the screen that is middle brightness (middle gray works best).

  • Vertical/horizontal stripes - those are caused by flicker in the florescent tube on the back of the LCD screen (theoretically shouldn't happen on LED screens, but I don't have one here to test it), you have to set the camera's shutter speed so it catches an entire cycle (if you're power is 50Hz 1/50 or 1/25 will do, if your power is 60Hz 1/60 or 1/30 - USA is 60, most of Europe is 50) - I have no idea how to do this with an iPhone

  • Round stripes - this is moire pattern, it is caused by the camera behind fooled by the "grid lines" between pixels - move in closer, move out farther or change angle until they disappear.

  • Random dots - this is noise, any acceptable camera (including the iPhone) will only produce visible noise in low light conditions and a screen is pretty bright so this shouldn't be an issue - but it can happen outside the screen or in dark areas of the screen - you can try to play with the screen brightness or add more light (add light for off-screen noise only, and be careful about glare) - in this case it's probably best to remove noise in post-processing

  • Strange color casts - this can be caused by the fluorescent flicker (and solved by setting the shutter speed) or bad white balance - to correctly set the white balance with a good camera shoot raw and adjust in post or crate a custom white balance based on a blank white screen, with an iPhone (or a P&S that doesn't support custom white balance) focus on an area that is pure white or neutral gray (to also control brightness it better be middle gray)

I think that's it, if there are other things that can go wrong or anyone knows how to set the shutter speed on an iPhone leave a comment and I'll update the answer

You can find a more detailed version of this answer on my blog at photographing screens

Nir
  • 20,825
  • 4
  • 38
  • 74
3

On the iPhone, taking the picture in HDR mode gives you a composite of three photos taken and low, medium and hi range. As a result you are likely to catch all of the pixels at least once.

Vinny
  • 31
  • 1
2
  • If it's too dark, then try setting the exposure manually.
  • Use a relatively slow shutter speed so that you don't capture any flickering / screen refreshing. I believe that some screens refresh at around 50 times a second, so I would start with a shutter speed of 1/20 second. I'm not sure exactly how this works on LCD/LED screens.
AJ Finch
  • 11,822
  • 3
  • 43
  • 76
  • The OP is asking how to do this with a cell phone camera, not with a camera that has manual controls. –  Jun 15 '20 at 02:53
0

For production clarity level clarity and for expediency, make the device and screen 2 separate pictures to be blended. This involves 1 environment picture for context context, and a separate subject image to be projected onto the device screen for the most clarity:

  1. Take a picture of the device with the screen set to the lowest setting (environment picture).
  2. Grab a screenshot from the device, or the image you want to be on the screen (subject picture).
  3. Black out the device screen in the environment shot (or set to transparent).
  4. Rotate and inject the screenshot or desired subject shot onto the phone screen.
  5. Blend edges of device screen (environment) into subject layer as needed.
