I have a camera looking at a flat plane that is a known distance away from it. I also know the cameras intrinsic parameters.

The image from the camera looks like this: (it's grayscale but that shouldn't matter)

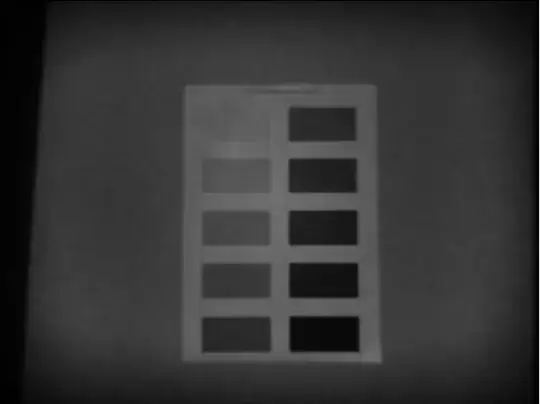

It has notable lens distortion, so I correct the image via OpenCV's undistort function. The result looks like this: enter image description here

Now my question is: How can I calculate the real-world size that each pixel corresponds to on the plane? For example, if I measure that one of the rectangles is 50 pixels wide, how can I calculate how many millimeters that would be?
