What do the characters on this CCTV lens mean?

Question

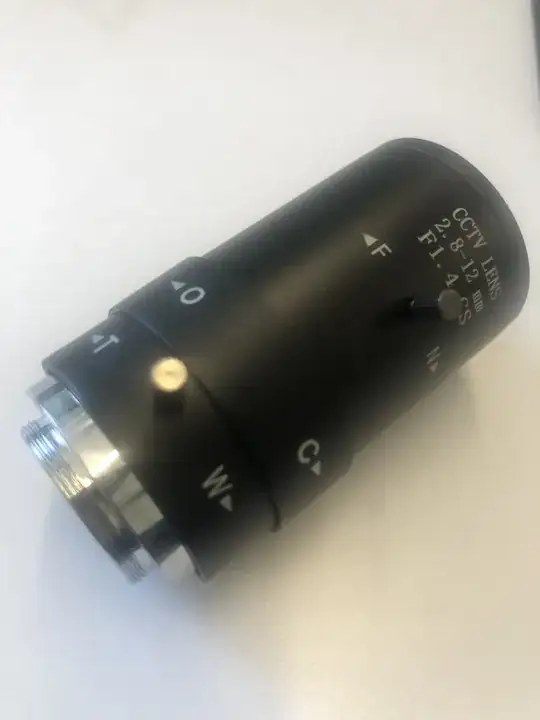

There are 3 controllable rings on the CCTV lens. Each ring has 2 characters on them with the ring farthest from the sensor being F and N. Next is O and C. The last ring is T and W.

What does each of these characters represent? The O and C controls the aperture, so I'm assuming it stands for open and close. I'm guessing the F and N stands for far and near. I have to adjust that and the W and T ring for the camera to focus.

score 25 · Accepted Answer · answered May 31 '23 at 17:47

25

"W"ide and "T"elephoto - i.e. they will control the zoom - as opposed to "N"ear and "F"ar which control the focus.

answered May 31 '23 at 17:47

Philip Kendall

21,867
6
67
101

12

O for Open, C for Closed? – spikey_richie May 31 '23 at 20:02
2

I believe so. The diaphragm opens up and closes in relation to that particular ring. – Neoprism May 31 '23 at 20:25

score 5 · Answer 2 · edited Jun 04 '23 at 23:47

5

The descriptive text on the lens says "2.8-12mm" so this is a zoom lens. Therefore you have three controls, aperture, focus and zoom.

I would be pretty sure that the markings are

Wide/Telephoto (zoom)
Open/Closed (aperture)
Near/Far (focus)

On most lenses there is some cross-coupling between the focus and zoom. Changing one will have some effect on the other.

edited Jun 04 '23 at 23:47

U. Windl

443
3
15

answered Jun 02 '23 at 13:34

Peter Green

833
5
13
