Is data recovery possible for this sort of crack?

enter image description here

Tetsujin
  • 23,252
  • 3
  • 46
  • 97
Jush42355
  • 11
  • 1

1 Answers1

4

No sorry. You can be 'virtually' 100% certain this broke the NAND. As long as the NAND is intact there's a chance but it would still be a major undertaking.

Now assume data is vital, and you find a lab that even sees a remote chance to pull it off, chance of success would be so uncertain and so much effort would go into this, price will be astronomical or the lab will require a considerable attempt fee but probably both.

enter image description here

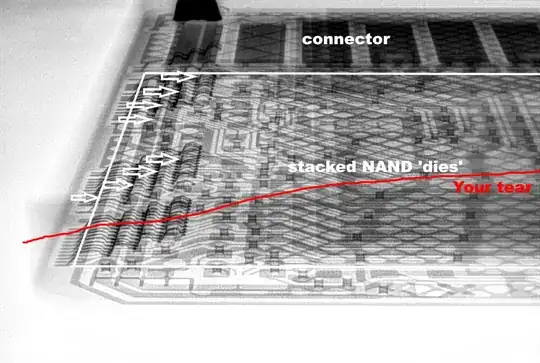

To give an idea.. See those stacked dies, connected by microscopic bondwires. Anything broken in there is beyond repair.

To be absolutely certain first step would actually require an x-ray of your microSD card and then determine location and dimensions of the NAND but I am willing to bet money on this being a mission impossible.

Joep van Steen
  • 381
  • 2
  • 10
  • Thanks for your reply. I sent the picture to DriveSavers who said “we have new technology that may make data recovery possible, even for a break like this.” Is this still reliant on the NAND chip being intact or is there a remote possibility of retrieval even if the NAND chip is affected? – Jush42355 Jan 27 '23 at 06:43
  • @Jush42355, SD cards are manufactured by 7nm process (by 2019 years). So if the chip is broken they should map two peaces with preciseness of these 7 nm. Which is (IMHO) practically impossible. – Romeo Ninov Jan 27 '23 at 07:50
  • @RomeoNinov I read online that data can be retrieved from just one of the chip pieces as well? – Jush42355 Jan 27 '23 at 07:56
  • @Jush42355, even if they read the chip then it's need to reconstruct filesystem, directories (if any) and files. So my personal estimation is they may recover 1 file from 1000 (optimistic) :( – Romeo Ninov Jan 27 '23 at 08:13
  • 1
    @Jush42355, call their bluff and explain this is their chance to proof this capability to the World - of course no charge for you. – Joep van Steen Jan 27 '23 at 13:18
  • 1
    @RomeoNinov, it's worse than that. If they manage to dump chip you basically have an non error corrected, scrambled 'binary blob' that is nowhere close to a file system yet. With some 'luck' ECC algorithm isn't even supported yet. – Joep van Steen Jan 27 '23 at 13:21
