I am working on A BLE beacon application to advertise data.
I am using nordic nrf52 Development kit and nordic sdk s132.
I am starting from the beacon exapmle provided by nordic.
My question is how is the packet format of the message generated by that example:

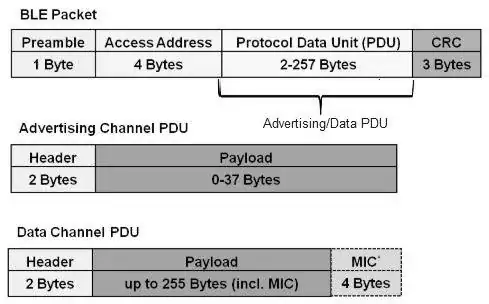

because as I could see from the code the only thing I am changing as a user the the manufacturer specific data field and as far as I know a BLE packet has this format
But I do not see any function to calculate the CRC and In the included driver files I do not see any security related files
Should I add these by myself and if so I need to know what is exactly handled by the nordic stack and is that I should add myself
Asked
Active
Viewed 358 times
2
Abyr
- 105
- 7
-
have you see this? ... https://electronut.in/bluey-beacon/ – jsotola Jun 01 '19 at 01:04
