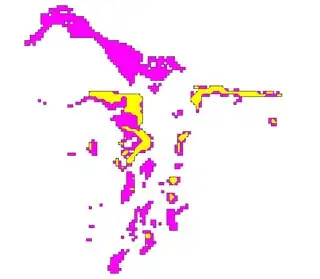

I have two shapefile layers created from different thresholds from a predictive model (Pink=80; Yellow=95).

Is there a way to create a new layer of only those pink polygons that contain yellow polygons and effectively erase the pink polygons that do not contain yellow?

If I use Geoprocessing - Intersect I will end up with just a copy of the yellow layer.

enter image description here

PolyGeo
  • 65,136
  • 29
  • 109
  • 338
Corey
  • 61
  • 1
  • 1
  • 2

2 Answers2

2

In ArcGIS Desktop you can use Select Layer By Location to do this:

Selects features in a layer based on a spatial relationship to features in another layer.

The relationship to use is INTERSECT.

Before running this add your shapefiles to a map so that you have them as layers.

After you have made the selection you can right-click on the selected layer to export it as a shapefile.

PolyGeo
  • 65,136
  • 29
  • 109
  • 338
0

Use select by location from selection tab. Selection mode: select that layer from which you need to select Source layer: overlapping polygon Spatial selection mode : are within (clementini) the source layer feature
