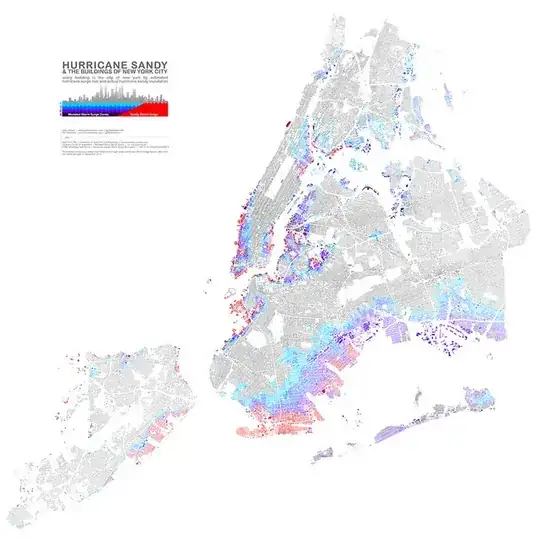

Examples of building-level geovisualization

Question

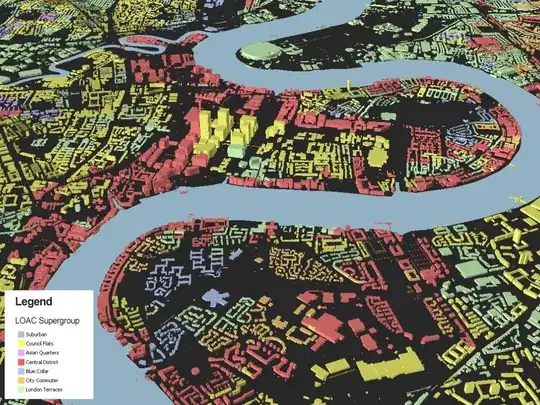

I have recently stumbled upon a presentation and paper by Duncan Smith exploring geovisualization of 2001 area classification of output areas using building level resolution of urban area (London in this example).

enter image description here

Two questions:

Could you point me to any other examples of such applications using social/economic/health data?

What are the advantages and disadvantages of your examples?

Interactive example following similar principles: http://casa.oobrien.com/booth/# — radek, Feb 21 '12 at 14:01
You should make that an answer! I missed it and accidently referred to Booth again in my recent answer. — Andy W, Feb 28 '12 at 18:22

score 13 · Accepted Answer · edited Feb 20 '14 at 14:59

13

Noise mapping a good example of such visualization at the building-level (it is even more detailed, at the facade level). The advantage is obvious: mapping such phenomenon is not possible in 2D. The disadvantage is that is is hard to see the overall noise repartition.

Noise mapping

Sources: Noise map of Paris municipality (left) and MITHRA-SIG (right).

edited Feb 20 '14 at 14:59

Community

1

answered Mar 22 '11 at 17:31

julien

10,186
6
55
93

2

Nice example. Just curious though - what is the source? Do you know how they calculated the orientation of the facades too? – djq Mar 22 '11 at 18:49
I have added the sources. The facade orientations are certainly calculated using their normal vector. – julien Mar 22 '11 at 20:08
I like, but disagree that mapping noise in 2d is not possible. http://tinyurl.com/bup8q24 I put some 2D noise maps for Defra awhile back. We also did some KML, but TBH it was easier to see patterns in 2D – jakc Mar 29 '12 at 09:49

score 8 · Answer 2 · answered Feb 28 '12 at 17:39

8

Building footprints in the Boston area coded according to their proximity to liquor licenses:

enter image description here

(Source and more info)

answered Feb 28 '12 at 17:39

radek

10,579
12
86
121

2

Every realtor should have this map for the entire U.S. Seriously. – Chad Cooper Feb 28 '12 at 19:20

Kirk Kuykendall · Answer 3 · 2011-03-23T14:15:16.540

It's not quite to the building level, but there is a parcel based landuse forecast model for the Houston area.

2035 Lanuse

When I see such fine-grained modeling I get the feeling that GIS needs some sort of uncertainty principle.

Update

I forgot to mention that this model was created using UrbanSIM.

Update2

This paper, inspired by UrbanSim, Interactive Design of Urban Spaces using Geometrical and Behavioral Modeling, describes how "building envelopes" can be generated:

Our system determines the building type, which implicitly reflects land use, by inspecting the ratio of number of jobs to the population size and chooses a building from a small database of procedural building styles.

Especially since Tobler's First Law makes less and less sense these days. — mvexel, Mar 23 '11 at 15:05

score 4 · Answer 4 · answered Mar 29 '12 at 09:28

Two more examples on building energy/heat issues.

National Heat Map from UK showing heat demand from buildings with pretty nice interactive tool for calculating stats for user defined areas. (More info, source)

enter image description here

Estimated Total Annual Building Energy Consumption at the Block and Lot Level for NYC. (More info, paper, source).

enter image description here

score 3 · Answer 5 · answered Jun 05 '12 at 09:03

3

CartoDB blog points to an interesting project: Welcome to 1940s New York.

Excellent example of marrying the output of 1943 New York City Market Analysis

enter image description here

with modern visualization tools:

enter image description here

answered Jun 05 '12 at 09:03

radek

10,579
12
86
121

score 2 · Answer 6 · answered Mar 16 '12 at 12:38

2

Watching episode of BBC's Filthy Cities I stumbled upon one more classic example, simmilar to Booth's map pointed by Andy W.

It's a Sanitary Map and Social Chart of the Fourth Ward of the City of New York that accompanied 1865 Report of the Council of Hygiene and Public Health of the Citizens' Association of New York upon the sanitary condition of the City.

enter image description here

answered Mar 16 '12 at 12:38

radek

10,579
12
86
121

1

Cool beans. I suspect one could find other historical examples in David Rumsey's map collection, but in a quick search I could not find any. (will have to probe deeper) Also this NYC map reminds me of this article on NYC prostitution houses circa 1870. I wonder off-hand if areas of the city that are in disorder even so long ago are still correlated with disorder today. – Andy W Mar 16 '12 at 13:54
@AndyW: Thanks for sharing The Gentleman’s Directory - haven't heard of that story. In similar vein - story from XIX century Japan. – radek Mar 16 '12 at 14:44

score 1 · Answer 7 · answered Feb 28 '12 at 18:16

An few interesting applications can be found on James Chesire's blog in this post, Deceptive in their Beauty?. In that particular example he gives both positive comments about using building parcel data to attempt to more accurately visualize population location data (mainly referring to the work on dasymetric mapping versus just symbolizing census geographies), but also gives some critical comments. In particular, the mapping of the population attributes to the building parcels implies a much greater level of precision in the data than it warrants (a sentiment that fits in well with Kirk's comment about an uncertainty principle). It is a similar critique to many dot density maps (which the blog mentions as well).

He has a few other examples, and points to the work of Charles Booth. A relevant historical figure in mapping such small units. An example of his work (original link available from blog post) is below.

enter image description here
