I'm trying to display a highway on a map. But there is a transition between the lines (see picture within the red circles) that I would like to remove. Does anyone know how to remove the transition that the lines are showed continuously?
Asked
Active
Viewed 47 times
0
-
Those are the nodes/vertices creating your lines. If you remove those, your line will cease to exist (in its current form). – Erik Dec 06 '23 at 14:54
-
Yes I know that, but I'm wondering if there's a tool/function that 'removes' those visible nodes so that it looks like it's one line – vuayalo Dec 06 '23 at 15:00
-
Is this what you need? https://gis.stackexchange.com/q/423272/52808 See the answers regarding Geometry Generator or SAGA smoothing tool. – winnewoerp Dec 06 '23 at 15:06
-
Unfortunately not. I just want the yellow line to be continuous without the orange breaks in between:) – vuayalo Dec 06 '23 at 15:29
-
what about https://gis.stackexchange.com/a/163665/79 – Ian Turton Dec 06 '23 at 15:47
-
or https://gis.stackexchange.com/q/20214/79 – Ian Turton Dec 06 '23 at 15:48
1 Answers
1
The number of vertices should make the line appear smooth enough for the scale at which it is used (more zoomed out than in your image). It depends on the resolution of your data.
If you want to 'fake' a smoother line, try using the Vector Geometry -> Smooth processing algorithm. Ironically, this will add more vertices to give the appearance of a smoother curve.

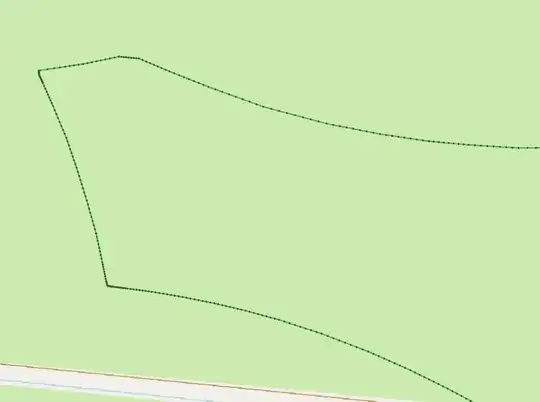

Original lines:
After running Smooth with 4 iterations and 1m offset:
