Splitting line layer with point layer using QGIS

Asked Aug 15 '22 at 09:39

Active Aug 22 '22 at 07:16

Viewed 95 times

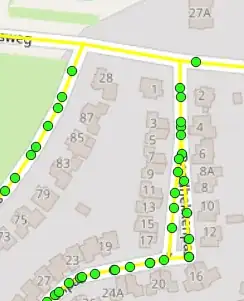

I created 1 connected road network without segments. In the image I selected the line to show that it is fully connected.

Now I want to split the line layer into segments at the points. does someone know how?

If I use SAGA Split lines at points I get the result shown in the second image.

UPDATE: I fixed it myself by snapping the line on the points. This will create the correct segment.

edited Aug 22 '22 at 07:16

asked Aug 15 '22 at 09:39

Sander Van Beuningen

Are you asking how to use the SAGA-tool split lines at points? – Erik Aug 15 '22 at 09:46
the saga tool does not work how I want it to work. I updated my question with the saga results in it – Sander Van Beuningen Aug 15 '22 at 09:49
Please make sure you used the correct point layer. – Erik Aug 15 '22 at 09:55
I did checked it multiple times. But the line is splitting on certain intersection points from the line layer itself. I don't understand why because it should be 1 connected line layer. – Sander Van Beuningen Aug 15 '22 at 09:58
Can you provide example data? can you provide a screenshot of the arguments you hand to the tool? – Erik Aug 15 '22 at 10:03
I updated the question. The arguments are in the 3th image. How do I share shapefiles with you? – Sander Van Beuningen Aug 15 '22 at 10:10
Have you tried selecting the point layer from the already opened ones? – Erik Aug 15 '22 at 10:21
yes, but that is not the problem... – Sander Van Beuningen Aug 15 '22 at 10:35
Sorry I'm trying to narrow down the error source, since the tool works flawlessly with my data. Have you tried with mockup data? – Erik Aug 15 '22 at 10:57
Can I send you my shapefiles? mabye you can reproduce the error. What is mockup data? I am glad you are willing to help. – Sander Van Beuningen Aug 15 '22 at 11:32
https://drive.google.com/file/d/1GyOBuc3MBK_j4ZCXYUKp429-b-OORIiR/view?usp=sharing – Sander Van Beuningen Aug 15 '22 at 11:38
https://drive.google.com/file/d/1Ax5w8I2SSOlNTURPFAl51aZBNuPplcOF/view?usp=sharing – Sander Van Beuningen Aug 15 '22 at 11:39
This question was asked before - see here for a solution: https://gis.stackexchange.com/questions/413117/splitting-line-with-point-layer-in-qgis/413121#413121 – Babel Aug 15 '22 at 16:57
