How to use Z-Coordinate in QGIS?

Question

I was mapping an area in Namibia and also tracked a lot of paths on my way with my Garmin device... so I thought it would be nice to see height differences in my area (esp. interesting in the raining-season... where is the water going to be?)... but then I came to notice, that QGIS does not support the Z-Coordinate when using Shape-Files. I have currently all the data stored as a GPX file, how can I get QGIS (1.8) to recognize the Z-Coordinate?

And yes my device supports the tracking of height, that's for sure :)

score 11 · Answer 1 · answered Dec 06 '12 at 10:42

11

Importing the GPX file with add vector layer, and selecting track_points layer, you get all collected height data in ele field. Saving that to shapefile, it is possible to change color according to the ele value, or create raster grids etc.

answered Dec 06 '12 at 10:42

AndreJ

76,698
5
86
162

So That means if I do this I have the Z-Value in the Attribute table? That would be very helpful :)! – Lukas Dec 11 '12 at 09:48
Yes, but only for point layers. I don't know if this can be achieved with line or polygon layers, since the attribute table applies to the whole object, and not the single line points. – AndreJ Dec 11 '12 at 10:19
Oh... thats unfortunate! Then I also need to transform my tracks into points? How can I do this? – Lukas Dec 12 '12 at 11:59
1

As I wrote in my answer, use Add vector layer, instead of the GPS tools. "track_points" gives you a point layer built from the trackpoints. – AndreJ Dec 12 '12 at 12:46

Gerardo Jimenez · Accepted Answer · 2012-12-15T00:29:22.533

7

In order to have the z value of your waypoints or tracks I usually use GPS babel. In Babel you can load a GPX file and then translate it to a csv file.

enter image description here

The resulting csv will have each point of the track or each waypoint with the altitude value this is an example of what you can get. enter image description here

Since it is a csv file, you can load it in to qgis with the "add delimited text layer plugin and then save it as a shp. Hope it helps

edited Dec 15 '12 at 00:29

answered Dec 06 '12 at 15:11

Gerardo Jimenez

3,002
19
34

There are 3 ways to your aim :D, nice! I like this one , because I know how to do it :) – Lukas Dec 11 '12 at 09:50

score 4 · Answer 3 · answered Dec 06 '12 at 12:14

4

The only way that I know to visualize your data in 3 dimensions is using grass' nviz module which should be accessible via the qgis' grass plugin.

There are some video tutorials on the subject at youtube. For reference I am posting two of those:

answered Dec 06 '12 at 12:14

nickves

11,519
3
42
75

Thanks for the links! I will try them! The GRASS ,module was also something I wanted to learn :) – Lukas Dec 11 '12 at 09:49
See also http://grasswiki.osgeo.org/wiki/Help_with_3D – markusN Dec 15 '12 at 14:18

score 0 · Answer 4 · edited Apr 13 '17 at 12:34

0

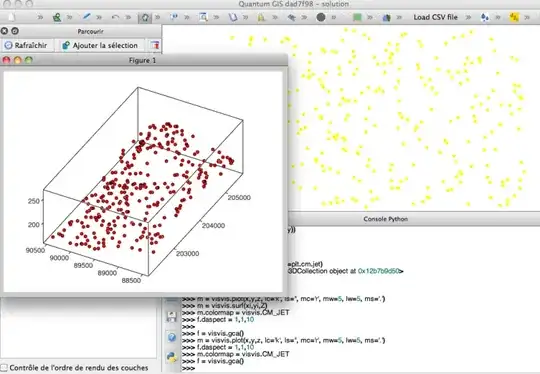

Yes, it is possible without NVIZ but using a Python script in the console with Python modules like Matplotlib or Visvis. See my explanations and references in TIN Interpolation using a vector layer or Is there are QGIS plugin to allow the 3d visualisation of geological borehole data similar to the functionality of Target for ArcGIS?

3D QGIS

edited Apr 13 '17 at 12:34

Community

1

answered Dec 15 '12 at 08:50

gene

54,868
3
110
187

Looks nice, but you have to get the Z-Coordinates from the GPS device into a shapefile first. The GDAL GPX driver gives this advice: 'If the environment variable GPX_ELE_AS_25D is set to YES, the elevation element will be used to set the Z coordinates of waypoints, route points and track points.' I guess this can not be set inside QGIS yet. – AndreJ Dec 15 '12 at 10:28
is the resulting shapefile is a 3d shapefile or a shapefile with z attribute, no problem with the method which uses the Python modules Shapely or ogr that allow to treat them. – gene Dec 15 '12 at 21:02
