I have been able to import a csv file into QGIS creating a vector file. I would like to convert the vector file into a raster file. An image of the vector file is shown below.

enter image description here

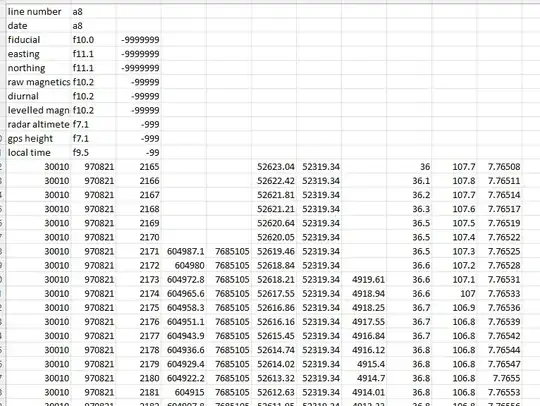

The structure of the file is shown below.

enter image description here

I used v.to.rast to try and convert the vector file to raster. I used the raw magnetics as the source of attribute values.

enter image description here

The following image was produce.

enter image description here enter image description here

I am trying to reproduce an image like below in QGIS but not sure if there are limitations to QGIS that I am not aware of.

enter image description here

Are there settings in symbology which i am not aware of which could clean up the image.

enter image description here

I have been able to tidy up the image using hillsade see images below , however i am not yet able to get the desired result. Im trying to accentuate the magnetic anomalies in the image.

enter image description here enter image description here

enter image description here

enter image description here

qgis Perth
  • 31
  • 3
  • the problem is not the north south lines , the problem is tidying up the image so it more clear. similar to the image below my image with the north south lines – qgis Perth Feb 20 '22 at 09:09
  • I have update the above post using hillside shading to produce a slightly clearer image – qgis Perth Feb 20 '22 at 09:28
  • Hello BERA thanks for the help, I have added another image above to the left is the raster I have generated in qgis, to the right is an open source magnetic anomaly map. When I say 'tidy up' I am referring to enhancing the anomalies so they are more noticeable. Hillshade had some desired effect. do you know of any other filter techniques i could use? thanks – qgis Perth Feb 20 '22 at 09:51
  • It looks like you are trying to visualize earth magnetic data, total field measurements. for that I would recommand to do some processing steps before, like computing a kind of pseudo gradient. this can be achieved with the median computation of your data, search for "zonal statistics": https://gis.stackexchange.com/questions/59238/is-there-a-zonal-statistics-tool-to-calculate-median-and-mode-raster-values-for – eurojam Feb 20 '22 at 09:57
  • Hi Bera how can I share my csv file with you? – qgis Perth Feb 20 '22 at 10:48
  • You need to do microleveling before converting the point data set to a raster format. – Gery Feb 20 '22 at 14:36
