1

I would like to delete my feature in OpenLayers by the "del" button. I found some solutionss here:

How to delete a feature in Openlayers 3.8.2 with `del` Key

and combined it with the hint here:

    var deleteFeature = function(evt){
    if(evt.keyCode == 46){
    vectorLayer.getSource().clear();
    if (selectInteraction) {
    selectInteraction.getFeatures().clear();
    }
   }
   };
   document.addEventListener('keydown', deleteFeature, false);

but I just want to delete only the selected feature by the "del" button. Instead of it all are gone.

I tried to put instead:

 var deleteFeature = function(evt){
  if(evt.keyCode == 46){
  vectorLayer.getSource().removeFeature(SelectedFeature);
  }
  };
 document.addEventListener('keydown', deleteFeature, false);

but it looks like the removeFeature(SelectedFeature); doesn't work here

I tried also this solution:

https://github.com/openlayers/openlayers/issues/4214

but it didn't work either.

My full JS fiddle is here:

https://jsfiddle.net/z08kfcg7/

which includes pure .js only

How can I delete only one feature selected instead of all of them?

UPDATE:

I tried also:

 var selectInteraction = new ol.interaction.Select({
  condition: ol.events.condition.click,
  wrapX: false
  })

var deleteFeature = function(evt){ if(evt.keyCode == 46){ selectInteraction.getFeatures().clear(); } }; document.addEventListener('keydown', deleteFeature, false);

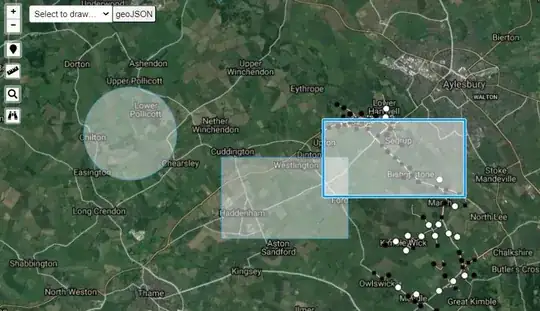

enter image description here

Nothing happens, just the feature previously selected is unselected now.

UPDATE:

function removeSelectedFeature() {
 var features = selectInteraction.getFeatures();
   if (features != null && features.length > 0) {
       for (x in features) {
         var properties = features[x].getProperties();
         console.log(properties);
         var id = properties.id;
         if (id == selectedFeatureID) {
          selectInteraction.removeFeature(features[x]);
            break;
         }
       }
     }
   }

var deleteFeature = function(evt){ if(evt.keyCode == 46){ removeSelectedFeature(); };

}; document.addEventListener('keydown', deleteFeature, false);

this one doesn't work either.

Remove selected feature Openlayers 3

UPDATE III

   var deleteFeature = function(evt){
   if(evt.keyCode == 46){

vectorLayer.getSource().removeFeature(selectInteraction.getFeatures()); };

}; document.addEventListener('keydown', deleteFeature, false);

This piece of code throws an error:

Uncaught TypeError: Cannot read properties of undefined (reading 'forEach') at e.removeFeatureInternal (Vector.js:906) at e.removeFeature (Vector.js:896) at HTMLDocument.deleteFeature (qgis2web.js:913)

TomazicM
  • 25,601
  • 22
  • 29
  • 39
Geographos
  • 4,087
  • 2
  • 27
  • 88
  • What exactly is "selected feature"? How do you identify it? Please edit your question with additional info. – TomazicM Oct 04 '21 at 14:08
  • If, for instance, I have 4 features in different geometry. I select one of them, it becomes highlighted, and then I can hit the "del" button and delete it. – Geographos Oct 04 '21 at 14:09
  • 1
    How do you highlight the feature? At the time of highlight you could set some global var selectedFeature to that feature and then use vectorLayer.getSource().removeFeature(selectedFeature); to delete it at the time of key press. – TomazicM Oct 04 '21 at 14:15
  • how this global var could look like then? – Geographos Oct 04 '21 at 14:22
  • Please edit your question and add the relevant part of the code where you highlight the feature. – TomazicM Oct 04 '21 at 14:26
  • I am clicking it (selecting) not highlighting. Possibly I have misspelled. Sorry. – Geographos Oct 04 '21 at 14:31
  • Please edit your question and add the relevant part of the code where you select the feature by clicking. – TomazicM Oct 04 '21 at 15:08
  • The question has been edited. – Geographos Oct 04 '21 at 15:30

1 Answers1

2

With your last try (update III) you were almost there. Select interaction .getFeatures() method returns a collection of elements (see https://openlayers.org/en/latest/apidoc/module-ol_interaction_Select-Select.html#getFeatures), so you have to either loop through it's members or refer to the only element. Reference is done with the .item method.

So your code could then look something like this:

var deleteFeature = function(evt){
  if(evt.keyCode == 46) {
    var selectCollection = selectInteraction.getFeatures();
    if (selectCollection.getLength() > 0) {
      vectorLayer.getSource().removeFeature(selectCollection.item(0));
    }
  };
};
document.addEventListener('keydown', deleteFeature, false);
TomazicM
  • 25,601
  • 22
  • 29
  • 39
  • Yeah! That was EXACTLY I was looking for. Many thanks. It looks like I haven't defined the additional variable. Lesson learned. – Geographos Oct 05 '21 at 08:09
