How to speed up the process of vector data visualization for a web application

Question

I have a GIS web application and vector data that is going from the model to the web application. For developing the User Interface I am using JavaScript and OpenLayers. But sometimes the amount of geospatial data that I need to simultaneously visualize on a map is very big (10 000+ objects) and the browser cannot respond to all user requests. So, how can I speed up the process of visualization (both model and UI part) of large amounts of geodata?

Answer 1

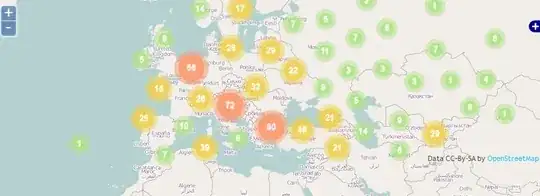

check out AnimatedCluster strategy for OpenLayers here for big data and good ui. you can find code example here.

beside this examine openlayers clustering example.

• Cluster Strategy Example, here

• Extended clustering, here

  i hope it helps you...

Answer 2

The techniques to solve your issue and improve vector web mapping are:

• Generalisation: The objects to display should be simplified/aggregated in order to adapt their level of detail to the visualisation scale/zoom. In theory, there should be on data layer for each zoom level. The best is to use a multi-scale database. See this question for an overview of existing generalisation techniques.

• Spatial index service and vector tilling: Only data in the view should be transferred and displayed. To make it possible, a spatial index service (if the objects are small and compact) or pre-computed vector tiles (if the objects are big) could be used.

The best is to use all three techniques as explained in this excellent document !
