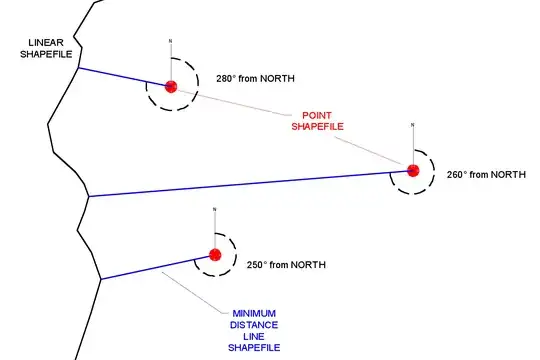

Is there a method using QGis to calculate the direction (degree) of the minimum distance from a point to a line.

I already have: - Point shapefile with hundreds of points; - Linear Shapefile with coast line;

I'm finding: - New shapefile with minimum direction from to coastline with a column in its attribute table showing the degree (from north) to these lines.

Min dist direction

Mr Prince
  • 73
  • 8
  • 1
    May be this can help : https://gis.stackexchange.com/questions/207004/distance-matrix-with-a-linear-feature/207172#207172, you will get the distance to the nearest node of a line – Gerardo Jimenez Mar 03 '18 at 20:31
  • Thanks, but I'm searching the DIRECTION (degree) of these minimum distance line!! – Mr Prince Mar 03 '18 at 23:36
  • But you need the lines, too, yes? If you follow the linked post to generate these lines, calculating the azimuth is simple. – jcarlson Mar 04 '18 at 02:04

1 Answers1

1

Open Field Calculator, add a new field to your minimum distance lines attribute table.

Enter the expression degrees( azimuth( start_point( $geometry), end_point( $geometry))).

jcarlson
  • 3,880
  • 1
  • 13
  • 34
