I'm trying to define a projection in QGIS. I want to add North America Albers Equal Area Conic. From the spatialreference site I copied the proj4 line:

+proj=aea +lat_1=20 +lat_2=60 +lat_0=40 +lon_0=-96 +x_0=0 +y_0=0 +ellps=GRS80 +datum=NAD83 +units=m +no_defs

Then I went into QGIS -> Settings -> Custom CRS and pasted the following into the window:

enter image description here

But when I go to view the projection within QGIS I see a very different set of parameters:

enter image description here

Is this ok?

I don't know enough about projections to tell if the parameters generated are the correct ones, or whether something else is going on. It also ignored the name that I provided which made me suspect the parameters may also be incorrect.

I'm using QGIS 1.7.3 on Windows 7.

PolyGeo
  • 65,136
  • 29
  • 109
  • 338
djq
  • 16,297
  • 31
  • 110
  • 182

1 Answers1

31

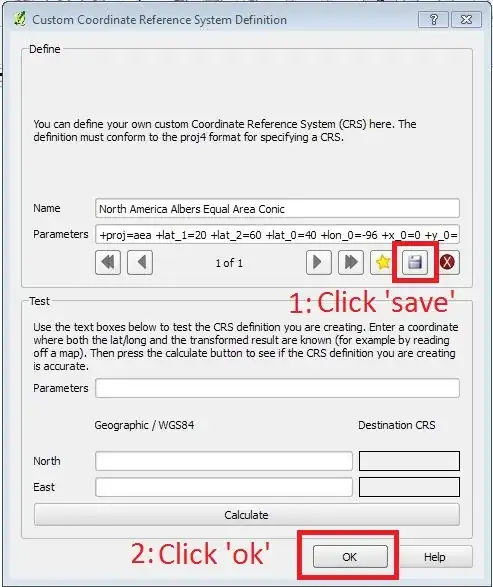

@underdark made me realize that I didn't actually press save while defining the CRS. So, what I needed to do was first click save, and then to click ok. The projection then showed up fine.

enter image description here
