How does spacing of GND via work for shielding?

Asked Oct 14 '23 at 18:03

Active Oct 14 '23 at 18:03

Viewed 43 times

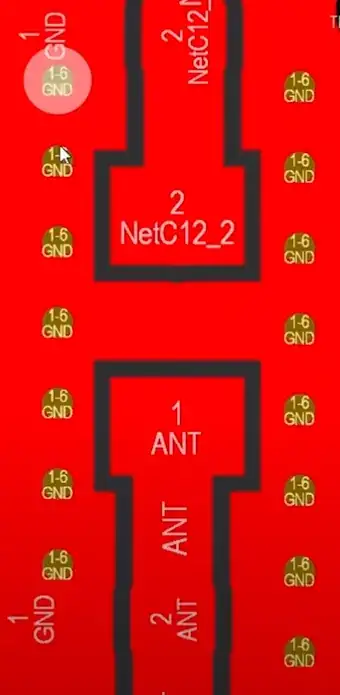

I noticed the YouTuber using GND vias around the PCB antenna. I know this is used to avoid any currents from nearby components coupling to the antenna.

However, he also mentions something about the spacing of the GND vias. How does the spacing determine what frequencies are attenuated near the antenna?

youtube link

asked Oct 14 '23 at 18:03

JoeyB

2,177
17
47

Can't write an answer now, but looking up the term "Bragg frequency" might be informational. – Hearth Oct 14 '23 at 18:28
@Hearth thank you. – JoeyB Oct 14 '23 at 19:00
1

The following post has a good discussion regarding stitching via spacing for antennas Stack exchange. – C. Dunn Oct 16 '23 at 15:04
