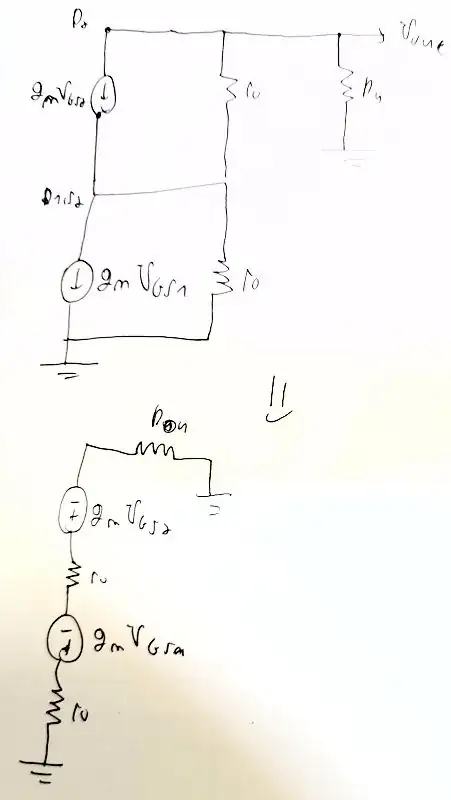

Are the circuits in the figure equivalent?
Asked
Active
Viewed 64 times
-1
-
Please clarify your specific problem or provide additional details to highlight exactly what you need. As it's currently written, it's hard to tell exactly what you're asking. – Community Jun 09 '22 at 06:22
-
I just want to ask if I can do the convertion that I did – Roey1997 Jun 09 '22 at 06:29
-
Have you tried to simulate it? – winny Jun 09 '22 at 10:57
1 Answers
0

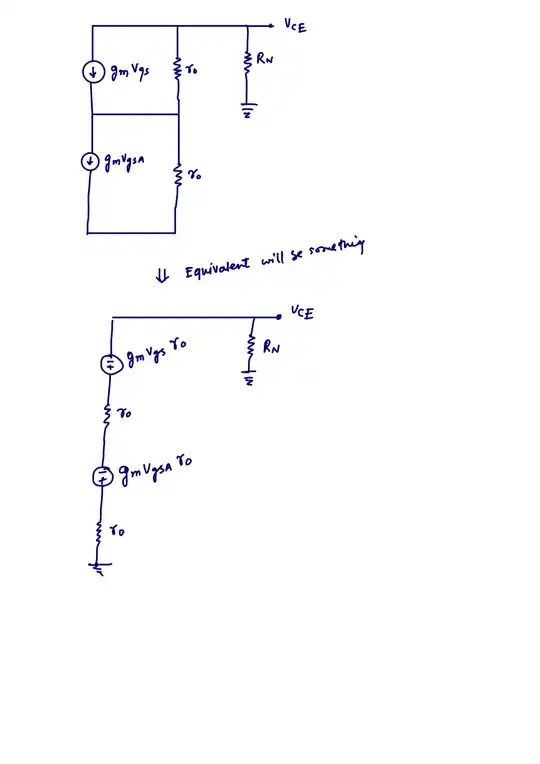

The proper way would be to combine the paralell resistance with the current source .
I have tried show it below check it out .
Trickk
