Designing AND gate using transistors

Question

I am asked to design AND gate using transistors on Multisim simulator

AND Logic Gate: Design and implement AND Logic Gate, which gives high output voltage if and only if its two inputs are at a high voltage level.

should be implemented using BJT transistors.

High voltage level: 3-5 Volts

Low voltage level: 0-0.7 Volts

Vcc= 5V

I should analyse the circuit and get all the resistors value. Can someone help me doing it please ?

Can you show us how far you have gotten and where you are stuck? — Spehro Pefhany, May 14 '21 at 02:16
I’m voting to close this question because it's a homework problem with no effort shown. — Hearth, May 14 '21 at 02:42
Menaeng, See this. I'm sure you can make the added modifications to meet with the problem requirements. — jonk, May 14 '21 at 02:59

score 1 · Answer 1 · answered May 14 '21 at 07:35

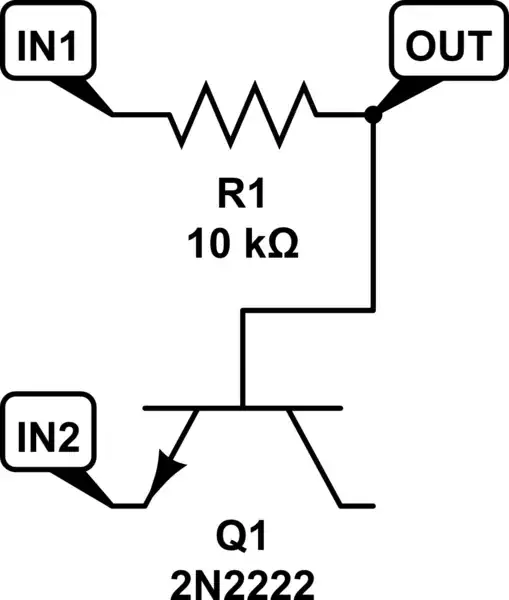

Here is a AND gate implemented with a BJT transistor. But I’m pretty sure this is not what you’re supposed to do.

schematic

^{simulate this circuit – Schematic created using CircuitLab}

Since your question looks much like homework, you should consider (and tell us) what you were taught recently. You should also tell us what you tried and how far you went.
