Capacitor values

Question

I don't have high-end multimeter. So, anybody please tell me the values of the following capacitors.

yeah. Googling helps. Also, so does at least tolerable photographing. — Marcus Müller, Jun 23 '20 at 10:14

score 3 · Accepted Answer · answered Jun 23 '20 at 10:08

3

Doing some googling:

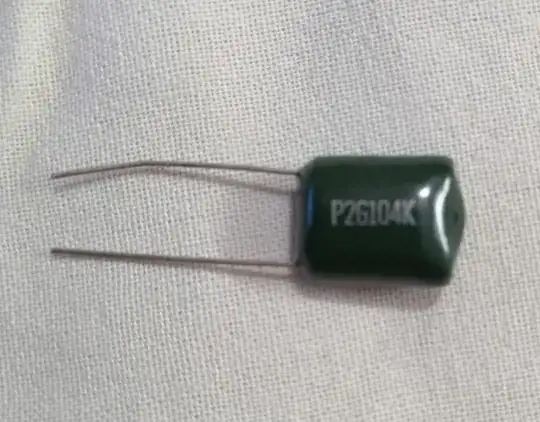

0.1 uF

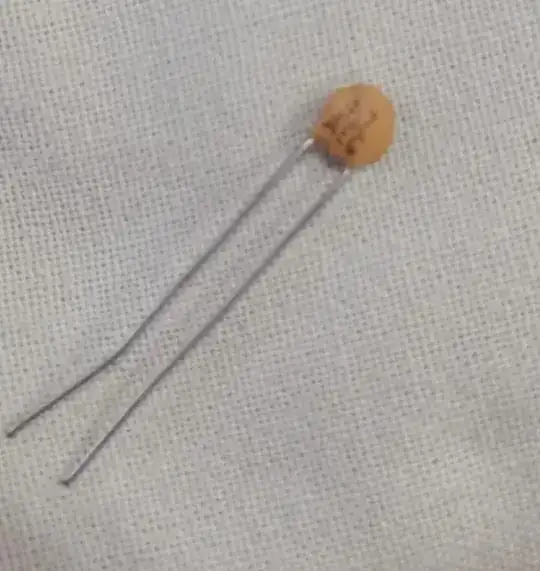

47 or 4.7 pF (I cannot see clearly if there is a dot).

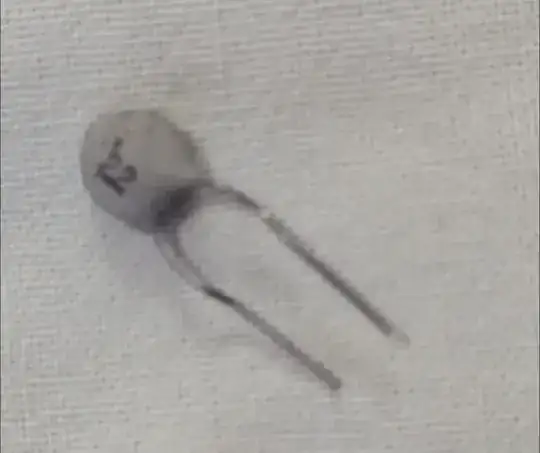

22 pF

answered Jun 23 '20 at 10:08

Michel Keijzers

Thankyou. one doubt, is last 2 type of capacitors are always in pF range. 1 can see the values but confused between nF and pF. – Vishal Jun 23 '20 at 12:26
1

@Vishal As far as I know, ceramic capacitors are always in pF. See the accepted answer to the link in item 2. – Michel Keijzers Jun 23 '20 at 12:28
1

Ooh, I got my answer in the above attached answer. Thankyou so much. – Vishal Jun 23 '20 at 12:31
1

@MichelKeijzers Hm, you can get MLCC at least for 22 µF, too. – Marcus Müller Jun 23 '20 at 13:07
1

@MarcusMüller But than it would be written as u47 or 4u7 right? – Michel Keijzers Jun 23 '20 at 13:26
2

Agree - For capacitors, given lack of an explicit multiplier, 'picofarads' is presumed. So 2nd and 3rd caps are 47 and 22 pF for sure. – Kyle B Jun 23 '20 at 15:38
1

@KyleB Thanks for the confirmation – Michel Keijzers Jun 23 '20 at 15:40
