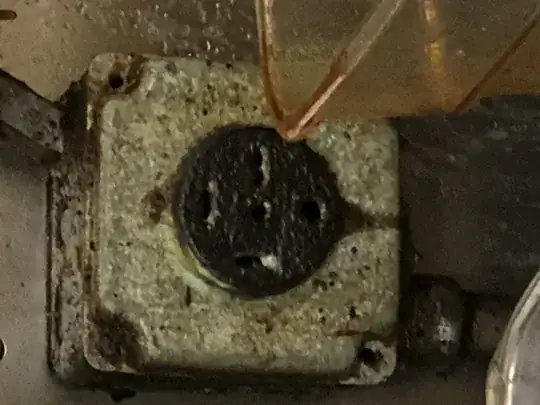

Does anyone know what this outlet is for and why it would be sparking with nothing in it.
Asked
Active
Viewed 100 times
2
Giovani Perez
- 21
- 1
-
2Full of dirt? Which country is this? – winny Sep 08 '18 at 17:45
-
2Give us some context. Where is this located? What kind of equipment is it near? – Elliot Alderson Sep 08 '18 at 18:06
-
Nothing in it? It looks full of dirt as @winny hinted. – Andy aka Sep 08 '18 at 18:06
-
It looks like the person is pouring water on it – Gabriel Fair Mar 09 '20 at 01:25
1 Answers
3
It's a NEMA 15-50 receptacle. 50A, 125/250V (two hots, neutral, and ground). The style of box and receptacle are typical of North America, so then it's just a matter of comparing its shape to a list of NEMA configurations, such as the one here: https://www.generatorjoe.net/html/web/outlet/quailplug.html
NEMA standard connectors are the most common style of mains power connectors used throughout North America. Nearly every receptacle installed in a North American building will be a NEMA type, except for some very specialized connectors such as used for wet locations or special equipment.
This sort of connector in particular is commonly used for high-power devices, most commonly things like ovens and clothes dryers.
If it's sparking all on its own, then it's contaminated with some sort of conductive residue or possibly has a loose wire inside.
