What is "rabbit ear" in a video-capture context?

Question

I was reading the TVP5158 datasheet, and ran into a register bit that would enable "rabbit ear". What is that?

Toby Jaffey · Accepted Answer · 2012-09-04T14:06:59.307

6

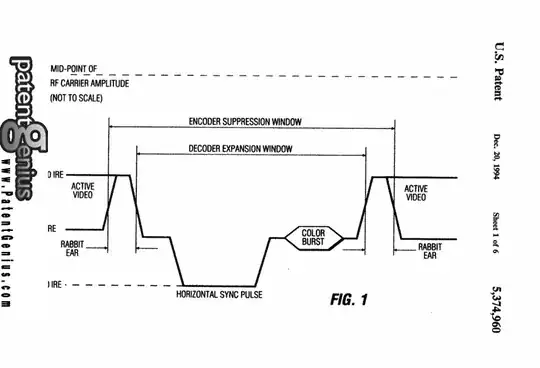

This patent refers to "rabbit ears" as distortions in the video sync pulse. You can see why they're called that from the shape below.

enter image description here

edited Sep 04 '12 at 14:06

answered Sep 04 '12 at 13:32

Toby Jaffey

1

Very plausible given the context of the device's register. The patent might also explain why TI didn't elaborate! – MikeJ-UK Sep 04 '12 at 13:51
This makes a lot of sense. Cool! – Shalom Craimer Sep 04 '12 at 19:28

score -1 · Answer 2 · answered Sep 04 '12 at 13:13

-1

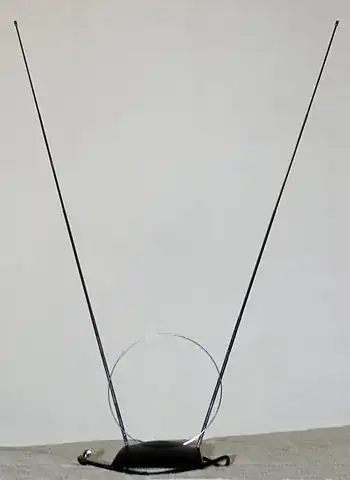

In a video context, rabbit ears usually refers to an antenna, so named because they look like ears sticking out of the top of your TV.

Rabbit ears

answered Sep 04 '12 at 13:13

Grant

That was my answer too (now deleted), but Mike rightly pointed out that this is a baseband decoder, and that doesn't need an antenna. – stevenvh Sep 04 '12 at 13:28
