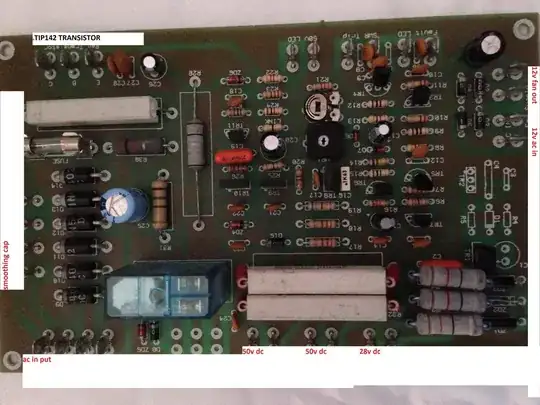

resistor values here is a picture of the power regulator board

could someone please tell me what the value of the three resistors in circle

(R1) 1 orange,orange black,gold red,red,black,gold and the same for the third

(R2/R3)second the grey resistor

(R28) brown,black,silver,gold,black

(R30)not sure if its pink,purple or brown , red,gold ?

the rest i have managed to get the values

i cant seem to find hem anywhere thanks

Wayne Richards
  • 25
  • 4

1 Answers1

0

See this handy table from Digikey:

enter image description here

R30 (39?) 1K 5%

R28 0.01 ohm 5%

R2/R3 22 ohms 5%

Spehro Pefhany
  • 397,265
  • 22
  • 337
  • 893
  • not seen these for a while as they are now smaller thanks bin out of the game for a while were bigger when i use to be at school/collage – Wayne Richards Apr 19 '15 at 20:30
