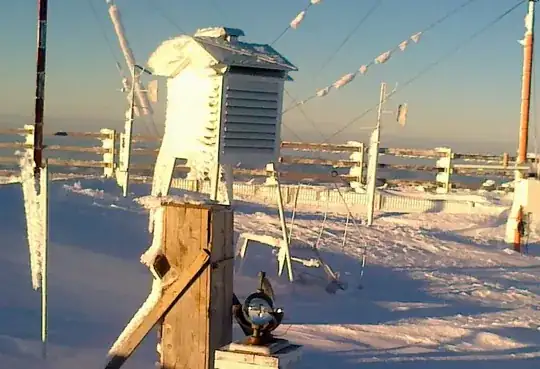

I found what looks like a "crystal ball" in a meteorological station in the Vlădeasa mountains (Romania). What is its purpose?

enter image description here

JeopardyTempest
  • 8,769
  • 3
  • 24
  • 55
andi
  • 303
  • 1
  • 7

1 Answers1

33

It's a Campbell-Stokes sunshine recorder, used to record the times at which the sun is shining. It acts as a lens, focusing the sunlight onto a piece of card. If the sun is shining, the focused beam will burn a hole through the card at that point.

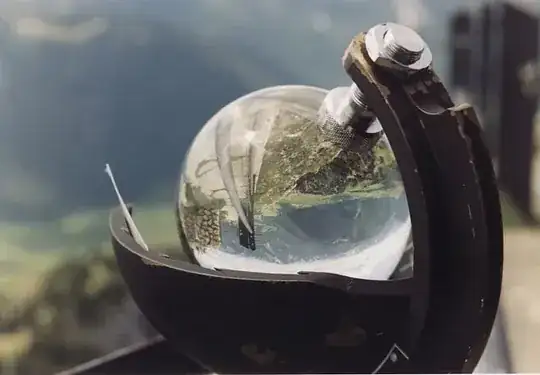

Here's a closer view of a sunshine recorder in Wendelstein, Bavaria: Sunshine recorder Source: Wikimedia Commons

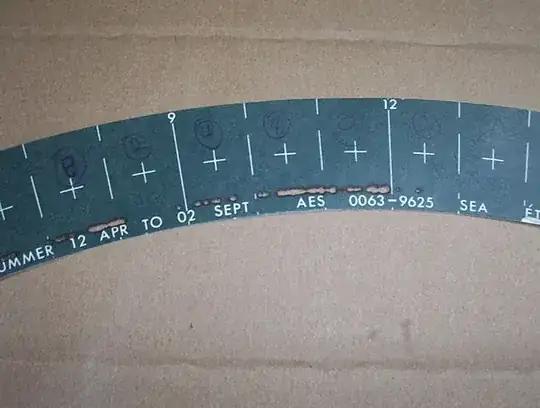

And here's a used recording card with holes burned through it: Recording card Source: Wikimedia Commons

Pont
  • 5,429
  • 2
  • 27
  • 43
  • 1
    But beware of early morning frost on the glass sphere, which may diffuse the focus so that early sunshine is not recorded. – Gordon Stanger Jan 11 '17 at 09:03
