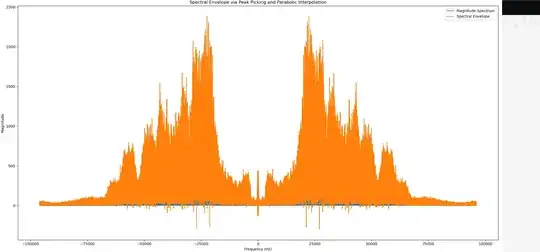

i have a 192kHz sampled signal that has been measured using an ultrasound MEMS microphone and i want to visualize the spectral envelope. I have found here and here ideas on how to do it (mainly "peak picking in the power spectrum followed by parabolic interpolation"). My data looks like this: enter image description here

This is not a good envelope. Can someone explain how to set the parameters correct to receive a proper envelope?

Tom
  • 121
  • 7
  • 1
    you'd need to show us what your magnitude spectrum looks like; it's hidden by your orange plot, completely. Also, what's not "good" about it? We can't know what you're looking for. What is the quality in a "spectral envelope" that you're looking for? – Marcus Müller Dec 06 '23 at 16:01
  • Since you only want to visualize, most of the time a smooth(x) on your signal would work well, considering averaging the energy spectrum preserves the total energy. Any other non-linear operation to highlight the peaks would mess with this simple operation. – Brethlosze Dec 09 '23 at 03:07
