I have a docker-compose.yml file with two image (Postgres extended PostGIS and pgadmin4):
version: "3.8"
services:
postgis:
image: postgis/postgis:15-3.3
container_name: postgis_container
ports:
- "5432:5432"
expose:
- 5432
restart: always
environment:
- POSTGRES_USER=user
- POSTGRES_PASSWORD=postgres
- POSTGRES_DB=dem
- POSTGRES_MULTIPLE_EXTENSIONS=postgis,hstore,postgis_topology,postgis_raster,pgrouting
volumes:
- postgis-data:/var/lib/postgresql/data
# postgis_logs:/var/lib/postgresql/logs
pgadmin:
image: dpage/pgadmin4
container_name: pgadmin4_container
ports:
- "5050:80"
restart: always
environment:
PGADMIN_DEFAULT_EMAIL: admin@admin.com
PGADMIN_DEFAULT_PASSWORD: admin
volumes:
- pgadmin-data:/var/lib/pgadmin
depends_on:
- postgis
volumes:
postgis-data:
pgadmin-data:

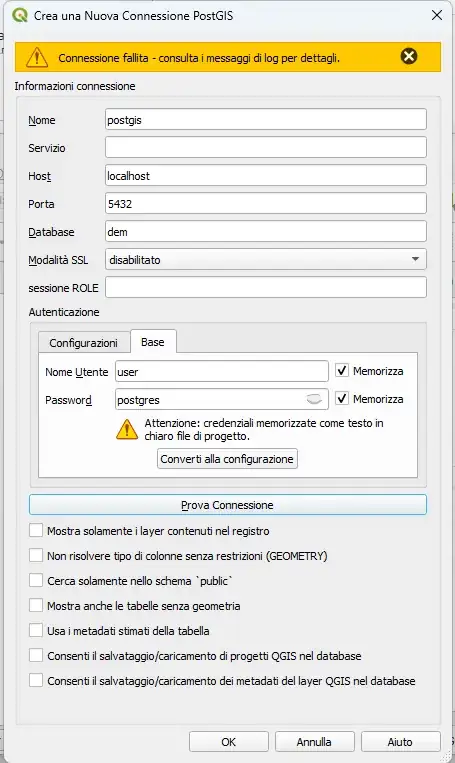

Everything works perfectly but I can't seem to connect the docker container with the QGIS application:

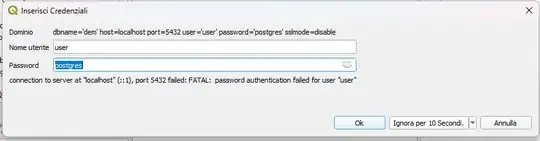

The error message:
I have searched the net for different solutions trying for several days but I am stuck on all attempts. I understand that you have to edit the file pg_hba.conf in var/lib/data/pg_hba.conf (in the container):
note: I have tried and retried all the modification solutions on the net such as those proposed by: link but to no avail
# PostgreSQL Client Authentication Configuration File
# ===================================================
#
# Refer to the "Client Authentication" section in the PostgreSQL
# documentation for a complete description of this file. A short
# synopsis follows.
#
# This file controls: which hosts are allowed to connect, how clients
# are authenticated, which PostgreSQL user names they can use, which
# databases they can access. Records take one of these forms:
#
# local DATABASE USER METHOD [OPTIONS]
# host DATABASE USER ADDRESS METHOD [OPTIONS]
# hostssl DATABASE USER ADDRESS METHOD [OPTIONS]
# hostnossl DATABASE USER ADDRESS METHOD [OPTIONS]
# hostgssenc DATABASE USER ADDRESS METHOD [OPTIONS]
# hostnogssenc DATABASE USER ADDRESS METHOD [OPTIONS]
#
# (The uppercase items must be replaced by actual values.)
#
# The first field is the connection type:
# - "local" is a Unix-domain socket
# - "host" is a TCP/IP socket (encrypted or not)
# - "hostssl" is a TCP/IP socket that is SSL-encrypted
# - "hostnossl" is a TCP/IP socket that is not SSL-encrypted
# - "hostgssenc" is a TCP/IP socket that is GSSAPI-encrypted
# - "hostnogssenc" is a TCP/IP socket that is not GSSAPI-encrypted
#
# DATABASE can be "all", "sameuser", "samerole", "replication", a
# database name, or a comma-separated list thereof. The "all"
# keyword does not match "replication". Access to replication
# must be enabled in a separate record (see example below).
#
# USER can be "all", a user name, a group name prefixed with "+", or a
# comma-separated list thereof. In both the DATABASE and USER fields
# you can also write a file name prefixed with "@" to include names
# from a separate file.
#
# ADDRESS specifies the set of hosts the record matches. It can be a
# host name, or it is made up of an IP address and a CIDR mask that is
# an integer (between 0 and 32 (IPv4) or 128 (IPv6) inclusive) that
# specifies the number of significant bits in the mask. A host name
# that starts with a dot (.) matches a suffix of the actual host name.
# Alternatively, you can write an IP address and netmask in separate
# columns to specify the set of hosts. Instead of a CIDR-address, you
# can write "samehost" to match any of the server's own IP addresses,
# or "samenet" to match any address in any subnet that the server is
# directly connected to.
#
# METHOD can be "trust", "reject", "md5", "password", "scram-sha-256",
# "gss", "sspi", "ident", "peer", "pam", "ldap", "radius" or "cert".
# Note that "password" sends passwords in clear text; "md5" or
# "scram-sha-256" are preferred since they send encrypted passwords.
#
# OPTIONS are a set of options for the authentication in the format
# NAME=VALUE. The available options depend on the different
# authentication methods -- refer to the "Client Authentication"
# section in the documentation for a list of which options are
# available for which authentication methods.
#
# Database and user names containing spaces, commas, quotes and other
# special characters must be quoted. Quoting one of the keywords
# "all", "sameuser", "samerole" or "replication" makes the name lose
# its special character, and just match a database or username with
# that name.
#
# This file is read on server startup and when the server receives a
# SIGHUP signal. If you edit the file on a running system, you have to
# SIGHUP the server for the changes to take effect, run "pg_ctl reload",
# or execute "SELECT pg_reload_conf()".
#
# Put your actual configuration here
# ----------------------------------
#
# If you want to allow non-local connections, you need to add more
# "host" records. In that case you will also need to make PostgreSQL
# listen on a non-local interface via the listen_addresses
# configuration parameter, or via the -i or -h command line switches.
CAUTION: Configuring the system for local "trust" authentication
allows any local user to connect as any PostgreSQL user, including
the database superuser. If you do not trust all your local users,
use another authentication method.
TYPE DATABASE USER ADDRESS METHOD
"local" is for Unix domain socket connections only
local all all trust
IPv4 local connections:
host all all 127.0.0.1/32 trust
IPv6 local connections:
host all all ::1/128 trust
Allow replication connections from localhost, by a user with the
replication privilege.
local replication all trust
host replication all 127.0.0.1/32 trust
host replication all ::1/128 trust
host all all all scram-sha-256
UPDATED
with the Docker comand I find th IP addrss of the container with postgis:
docker inspect -f '{{range.NetworkSettings.Networks}}{{.IPAddress}}{{end}}' postgis_container
'172.20.0.2'

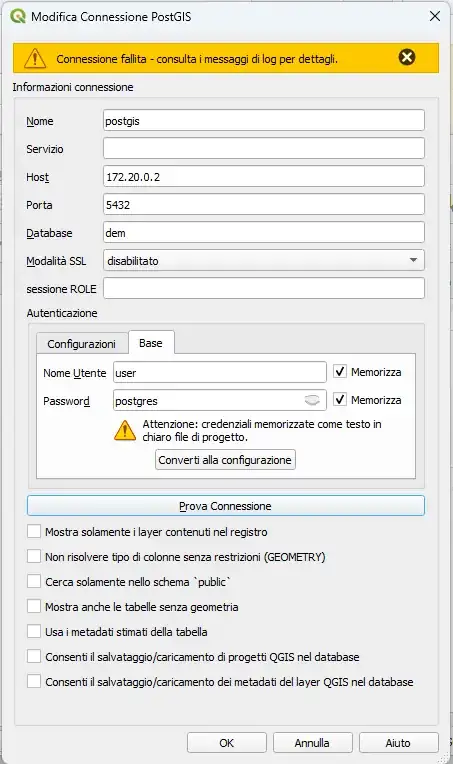

Try again in QGIS:
but different error:
ports: "5432:5432"but 5432 is already in use on the docker host machine, then it just fails to map the port from the host, but proceeds with the rest of the startup anyway, which means your attempts to connect to localhost:5432 would then be going to some other PostgreSQL server which was already listening on your system (either running directly on Windows, or with a mapping from 5432 to a container). – jjanes Jun 30 '23 at 00:37
