Logs growing and took up entire log drive even with log backups

Question

I have a volume just for logs and another volume just for log backups.

The log volume kept growing until it to run out of space even with log backups taken every 1 minute.

Isn't the backups suppose to free up the space within the log file to be written over again?

It seems like this isn't happening.

Answer 1

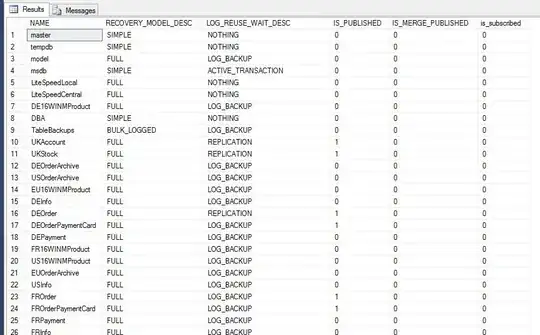

run this query on your server

SELECT [NAME],
       RECOVERY_MODEL_DESC,
       LOG_REUSE_WAIT_DESC,
       IS_PUBLISHED,
       IS_MERGE_PUBLISHED,
       is_subscribed
FROM SYS.DATABASES

if you have something different than NOTHING in the LOG_REUSE_WAIT_DESC there is where I would start investigating.

There are eight reasons SQL Server might report when it cannot truncate the transaction log

That is probably what is preventing the space within the log to be re-used.

For ACTIVE_TRANSACTION

I like to use the stored procedure called sp_whoisactive it will tell you what is currently running on your server.

or much simpler, just to see if there are open transactions:

DBCC opentran WITH NO_INFOMSGS

For LOG_BACKUP

Why is log_reuse_wait_desc saying LOG_BACKUP after doing a log backup?

LOG_BACKUP really means “either you need to take a log backup, or the log records that were backed up were all in the current VLF and so it could not be cleared.”

There are eight reasons SQL Server might report when it cannot truncate the transaction log

If your database recovery model is "full" SQL Server cannot reuse virtual log files unless all contained transaction log records have been backed up with a log backup. If a log backup is outstanding the log has to grow to accommodate new data changes. During this time you will see a log_reuse_wait_desc of LOG_BACKUP. Full or differential backups do not backup all transaction log records, so you need to run an actual log backup to allow for virtual log file reuse.

In this situation transaction log backups every minute I think it too high.

Find the number of VLFs in the transaction log.

I had this situation: MY_DB (232 Gb) = 500,000 VLFs

and this is what I did (keeping each VLF = 8GB):

dbcc sqlperf(logspace)
go
use my_db
Go
select size/128,* from sys.sysfiles
dbcc loginfo('my_db')

-- updated my_db autogrowth to 4096Mb (chunk of 4 Gb)
DBCC SHRINKFILE(my_db_log, 1)
select size/128,* from sys.sysfiles


ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 8GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 16GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 24GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 32GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 40GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 48GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 56GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 64GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 72GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 80GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 96GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 104GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 112GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 120GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 128GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 136GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 144GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 152GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 160GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 168GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 176GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 184GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 192GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 200GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 208GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 216GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 224GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 232GB )
ALTER DATABASE [MY_DB] MODIFY FILE ( NAME = N'my_db_log', SIZE = 240GB )

Transaction Log VLCs - each is a multiple of 4GB

Answer 2

So at a quick glance I looked at the backup jobs and they were successful when that really wasn't the case. Looking at the logs there were no new ones being generated. Turns out there was extra backups being kept when there shouldn't have been which took up the space on the volume where logs were stored.
