Dihydroxylation responds to steric effects and proceeds at less hindered positions. What will be the major product in the following reaction if the reagent used is $\ce{OsO4}$ followed by $\ce{NaHSO3}$?

enter image description here

Won't interactions between $\ce{- OH}$ bring $\ce{OsO4}$ on the same side as $\ce{- OH}$? Or will the $\ce{OH}$ sterically hinder the reagent from attacking the olefin from the same side?

Why I am I having this doubt is because I read that $\ce{m-CPBA}$ can be directed by hydroxy groups. For example, if the compound given below were to react with $\ce{m-CPBA}$, the product formed is:

enter image description here

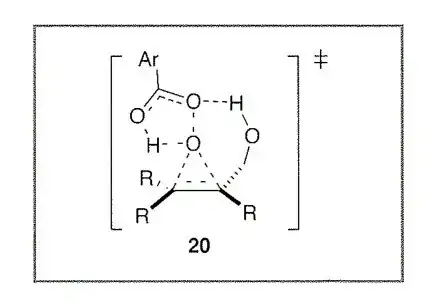

The reason is because of interactions between $\ce{m-CPBA}$ and the substrate like this:

enter image description here

EDIT:

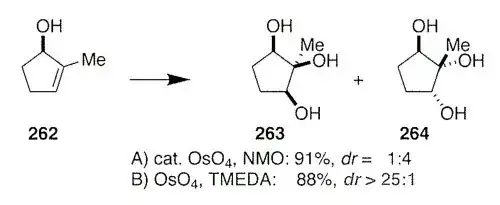

It's given in Classics in Stereoselective Synthesis by Erick M Carreira and Lisbet Kvaerno that $\ce{OsO4}$ with $\ce{NMO}$ does not respond to directing effects while $\ce{OsO4}$ with $\ce{TMEDA}$ responds to directing effects.

enter image description here

It's given in the same book that the reason why $\ce{OsO4}$ doesn't attack on the same side as $\ce{-OH}$ is because of electrostatic repulsions between oxygen atoms. These repulsions increase in E-alkenes. Fair enough. But won't the same reason apply for $\ce{m-CPBA}$? Why won't the oxygen atoms repel $\ce{m-CPBA}$ but only $\ce{OsO4}$?

Community
  • 1
Aditya Dev
  • 7,786
  • 16
  • 67
  • 113
  • The problem is OsO4 in NMO does not respond to directing effects. This is given in "Classics in stereoselctive synthesis" book by Wiley. No reason is given. Will there be a difference if NMO is replaced by sodium bisulphate? – Aditya Dev Dec 08 '15 at 13:47
  • Also, OsO4 in TMEDA responds to directing effects. – Aditya Dev Dec 08 '15 at 13:48
  • 1
    I don't know if this will help but in OsO4, oxygen atoms acts as oxide ligands and hence donates its electron pairs to the central atom (ie: Osmium) hence reducing electronegativity/ability to form H bonds (of oxygen atoms). Whereas in other cases the amino groups react with OsO4 and allow amine interactions... – Sujith Sizon Dec 23 '15 at 17:14
  • I know that. What about NaHSO3? Does it respond to directing effects. – Aditya Dev Dec 23 '15 at 21:47
  • 1
    @AdityaDev NaHSO3 is just a normal reducing agent, infact it is reduced by adding two moles of H2O like http://i.stack.imgur.com/AtL7U.jpg. – Sujith Sizon Dec 24 '15 at 18:59
  • 2
    See p 11 of this group meeting presentation: http://evans.rc.fas.harvard.edu/pdf/smnr_1993-1994_Dart_Mick.pdf There are different competing models with references to primary literature. It's a great question and I apologise that I don't have enough time right now to research and write the kind of answer it deserves. Hopefully someone else will do it. – orthocresol Jun 10 '16 at 13:45
  • In case of mCPBA a very favourable H-bond can be formed in the transition state/intermediate. The hydrogen in the acid is strongly polarized. I expect no good H-bond between OsO4 and the ROH alone. – Raphael J.F. Berger Aug 12 '16 at 16:49

1 Answers1

15

Dihydroxylation responds to steric effects and proceeds at less hindered positions. What will be the major product in the following reaction if the reagent used is osmium tetroxide followed by sodium hydrogen sulfite?

enter image description here

The crux of the original question seems to be why standard Upjohn dihydroxylation conditions (cat. osmium tetroxide w/ NMO as the terminal oxidant) doesn't respond to hydrogen bonding based directing effects, whilst stoichiometric osmium tetroxide in combination with TMEDA does.

One of the earliest reports of diamine ligands on osmium (of which TMEDA is one) was by EJ Corey's group in 1996 (, who obtained a crystal structure of osmium tetroxide bound to, in this case, a chiral diamine in a bidentate fashion. (If you're familiar with the Sharpless Asymmetric Dihydroxylation you'll see why this was an important first step).

enter image description here

With the coordination of diamine ligands to the osmium tetroxide understood, several groups began to think about why this allowed for hydrogen bond based direction of the dihydroxylation. The most comprehensive reference I've found is a chapter in Organic Reactions by Donohoe et al. (DOI: 10.1002/0471264180.or076.01 sadly not widely available, but a .doc file missing the figures is available from the publishers website which may be somewhat helpful).

Donohoe's group (in collaboration with several others) also published a detailed study of the transition states of these directed reactions in 2002 (DOI: 10.1021/jo026161y hopefully more widely available).

The essential argument being made is that the TMEDA (or other chelating diamine) is acting as a Lewis-base, providing electron density to the osmium tetroxide, which in turn makes it more willing to hydrogen bond (more electron dense carbonyls are more willing to H-bond). This is perhaps a sensible conclusion given how electrophilic osmium tetroxide is, with 4 highly electronegative atoms all pulling for electron density.

In the paper Donohoe proposes two possible TS structures for the directing effect, with either the oxygen or the nitrogen being involved in coordination to the hydroxyl of the substrate. Through NMR and IR work it was eventually determined that TS-A was the true pathway in which the TMEDA is donating to the osmium tetroxide, with the carbonyl on osmium using its lone pair to coordinate to the hydroxyl of the substate.

enter image description here

To conclude. Standard Upjohn conditions give the product expected by a steric argument alone (opposite to the hydroxyl) whilst modified TMEDA conditions give the product formed through H-bond mediated direction.

enter image description here

But won't the same reason apply for m-CPBA

This part of the question should maybe be another question entirely, but I think its fair to say that osmium tetroxide bears zero resemblance to mCPBA, the electronics of a metal centre vs the electronics of a peracid are completely different and as such their relative ability to hydrogen bond and hence be directed will be significantly different.
