I'm trying to replace a cassette. I got a chainwhip tool set + two lockring tools. I assumed it would be compatible as it's a 'common' 8 speed cassette from sram.

However after trying this yesterday, the lockring seems a tiny bit too small (though all the grooves seem to line up. But it won't budge with the nut going through the lockring. I even tried to gently hammer it in, but that just left a 'hexagonal' marking on the lockring...

Potentially I need to remove the nut? However there is very little contact area (a few mm) that could occur between a spanner and the nut, unless perhaps it'll come off with very little force (I could give this a try tomorrow).

I did find this thread that seems to mention a similar problem: Is this an unsuitable cassette lockring tool?

However it's not clear in that question on how to determine one from the other?

My main question here is:

  1. What lockring tool do I need?
  2. Do I need to remove the nut?

Actually, this is starting to make sense. In the question I linked, it seems likely that they had a freewheel, and their lockring tool was too BIG. In my case I have the opposite problem, but it seems I have an actual cassette rather than a freewheel. In which case my lockring tool seems to be for a freewheel rather than a cassette..

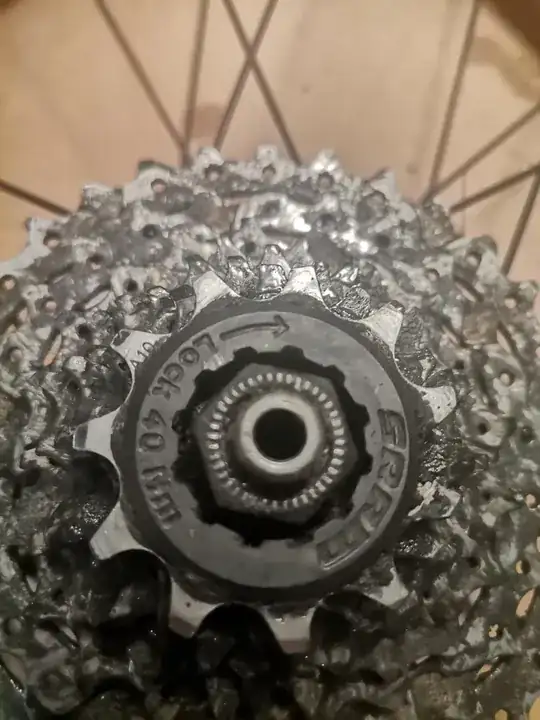

enter image description here enter image description here

Chris Stryczynski
  • 165
  • 6
  • Does your tool have a code or anything on it ? – Criggie Dec 13 '20 at 23:16
  • 1
    Can you say more about the lockring tools you got? I think that SRAM cassettes that fit on a Hyperglide freehub use the Shimano lockring tool. You don't normally need to remove the nut to take off the cassette. – Weiwen Ng Dec 13 '20 at 23:18
  • The lockring tool has no code, it seems to be a fairly generic set off ebay. The other one in the set is a lot larger - so that one can be excluded. – Chris Stryczynski Dec 13 '20 at 23:30
  • 2
    Your tool is most likely a rip-off fake, since it's from ebay, looks like the thing but isn't.... You need either a SRAM or a Shimano tool, which are identical. – Carel Dec 14 '20 at 08:13
  • @Carel Cheap Asian freewheel and cassette tools work just fine for me. Calling it rip-off or fake is out of place unless the design is patented or the seller claims that it comes from a brand it does not. And that is normally not the case. – Vladimir F Героям слава Dec 14 '20 at 13:16
  • I don't think this is a duplicate question but it might be illustrative: https://bicycles.stackexchange.com/questions/55998/would-the-shimano-freewheel-removal-tool-be-roughly-compatible-with-a-sram-shima – Swifty Dec 14 '20 at 17:27

2 Answers2

8

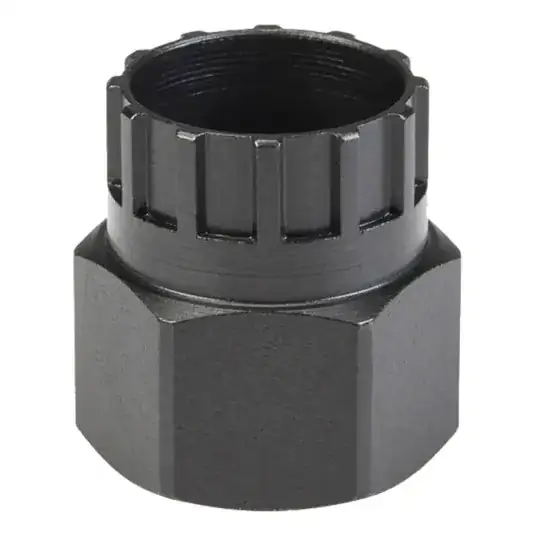

The tool you have looks to be for freewheels. Here’s a photo of a known good cassette tool (Park Tool FR-5.2): enter image description here

See how the splines are way deeper than your tool’s?

The other large tool you have is likely a bottom bracket tool and is not for cassettes at all.

MaplePanda
  • 15,547
  • 2
  • 31
  • 77
2

You're right - you shouldn't need to remove the nut to change the cassette. That would throw the bearings off and would make a small job into a large job.

However this might be a matter of tolerances with the nut being slightly too big, or it may be that your tool is not a cassette lockring and is for a freewheel instead.

I have a couple of different cassette lockring tools and sometimes one fits when another one doesn't.

Criggie
  • 124,066
  • 14
  • 180
  • 423
