How to safely transport a Brompton by air?

Question

I now own a Brompton folding bike.  (Fortunately, I bought my plane tickets first, as I am also now broke!)

Anyone here ever checked one into baggage in a B-bag, and suffer damage?  If so, what parts were damaged? I want to protect those parts, and I don't want to disassemble/reassemble. I suspect the bag itself is more likely to be damaged than the bike, but would like to learn from the experience of others.

Anyone here ever carried one on?  I've read that this can be done, but after seeing it in the bag, I don't believe it.  In fact, I think they're going to charge me extra for the size.  (See update below.)  Which reminds me of another related question:

Has anyone ever been charged extra on the grounds that the picture of a bike on each side of the bag makes it "sports equipment"?

UPDATE: Checked from IQT to LIM on Star-Peru.  Completely unusable on arrival.  Repairs very expensive.  Also, it does NOT fit in most airline overheads and is significantly larger than the explicit limits for carry-ons at many airlines.  Perhaps (as I've been told) it can be done on Southwest, but Southwest doesn't go anywhere that requires an airline.

UPDATE TWO: Every trip with the B-bag, there has been minor damage, but not nearly the disaster of Star-Peru. I finally went and got a Chubby which protects it much better and carries all my other stuff between flights. At the airport, fold the Brompton, empty the Chubby, put the Brompton in it, pack some of my things around it, and carry on the rest. Have to pay an oversize fee, or a bike fee, depending on the airline. Sometimes it's hard to predict which. Some airlines will treat it more gently if they know it's a bike; some the opposite. Also hard to predict.

Answer 1

Flying with a Brompton [as a carryon] is typically dependent on the airport staff and flight crew, rather than airline policies and procedures. I've had success getting the bike on larger planes no problem, mostly because overhead compartments were very large, or because there was sufficient space to store the folded bike (with seat and pedals removed) with strollers and folded wheelchairs. I'll even refer to it as a "mobility device", which will sometimes spook TSA into thinking that they're denying me accessibility or civil rights.

Again, this is mostly dependent on the gate/flight crew's level of tolerance/patience. The easier you make the process for them, the more likely they are to let you take the bike on the plane.

Here is a good blog post about the process itself.

A second, great blog post with tips as well.

Technically speaking, here are a few tips:

1. I use "Superior" MKS pedals that are completely removable. Nothing sticking out of the bike; they go into a separate bag in luggage.
2. I'll typically put a small bungee cord around the bike (inside the bag) to keep the bike from rattling/moving too much. It's also much more stable when being handled by flight crew/TSA.
3. Remove the seat; put it in your luggage/carry-on.
4. I also deflate the tires a little. This helps when the luggage compartment is a tight fit, and let's the tire sticking out give a little when the latch is shut.

Generally, the bike has suffered no real damage when I've carried it on or gate-checked it.

Answer 2

I check in my Brompton when I fly. I built a special case for it in my workshop using 2020 extrusion and coroplast that is 24x24x11.5 inches and exactly fits the Brompton.

They also sell hard cases but I didn't want to spend $300 for one of them.

It doesn't look like a bike case so I don't get charged the bike surcharge. When asked what's in it, I say "circus equipment" which is appropriate as one of the sides was made with coroflex from a circus sign. 24x24x11.5 is exactly under the maximum size specification for luggage and so I don't get an oversize surcharge -- however, it still get put in the oversized luggage area, most notably because it doesn't have handles.

Works well. It's not collapsible so I have to store it at my destination. I think the next iteration of it will be to put wheels on it so it can turn into a bike trailer at the destination.

With your soft bag, I'd put duct tape over any bicycle logos. Not just to avoid the surcharge but to avoid theft. Baggage handlers ignore any fragile labels so that won't work.

The fragile bits: The parts most likely to break are the hinge clamps and the pedals. Be sure to take off the folding clamps and bolts completely as they are known to snap when exposed. Carry a small pedal wrench or hex wrench (depending on your pedals) so you can take off your pedals. Taking the seat off and tucking between the frame is also a known tip to prevent damage.

I'd also put pipe foam over any exposed tubing (especially the handlebars) and maybe a sweatshirt or other clothing on the rims to protect them and the spokes. You can also unloosen and rotate the handlebars with a hex wrench so that the controls aren't as exposed.

Finally, you asked in comments about convertible trailer / cases. The Cyclone IV Chubby is one of them:

Answer 3

I've traveled a lot with a Brompton, but I'm not a fan of having to travel with a box for the Brompton (ie I don't want to carry it on a bicycle tour). So I make a box whenever I need one, and the only things I travel-with to make this box are:

1. About 10 meters of paracord
2. A knife
3. A permanent marker

Some days before I fly, I'll also get the following:

1. A roll of plastic packaging tape
2. 3-4 medium-sized boxes of cardboard (or big, if possible)

Luggage Fees

First, you do want to select your airline carefully. The Brompton is small enough to pack-up under the oversize luggage fees charged when shipping normal/big bikes on a plane, but weight may be an issue.

Brompton says their bike weighs 9-13 kg. With my upgrades, accessories, and added padding for shipping, my Brompton usually comes-to 20 kg. YMMV, but -- personally -- I avoid airlines that limit checked bags to max 18 kg (though 23 kg or 30 kg is a more common limit).

Obtaining Materials

I buy a whole new roll of packaging tape. I use about half of the roll, and I always travel with the last half, just in-case it the box needs to be opened/re-sealed.

I've never bought cardboard. I've packed my brompton for flying in North America, South America, Asia, and Europe. In every country I found cardboard for free and recycled it.

Preparing Brompton

The first thing I do is prepare the Brompton, so it's well protected.

The Brompton is a pretty rugged beast, and it's protects itself pretty well when folded, but I'm particularly interested in protecting the following vulnerable/expensive-to-replace parts:

1. The hinges
2. The front mounting block
3. The wheel spokes
4. The pedals

First, I unscrew the bolts and clamps from the hinges. I put these in a ziplock baggie and I either check it with my other luggage or wrap it in cardboard and tape it inside the folded brompton's triangle or something.

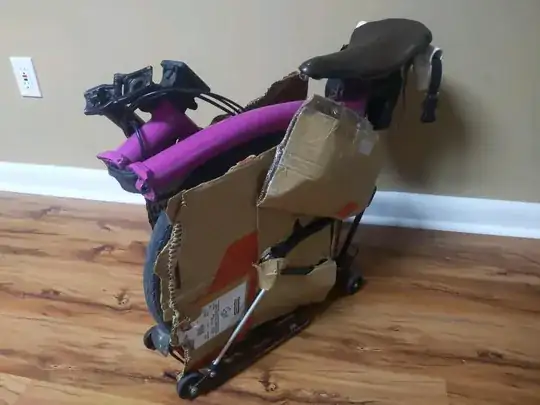

Second, I rip/cut pieces cardboard from the smallest box I have, and I bend the strips around the above-listed parts to add padding to protect them (this will, of course, be redundant padding in-addition to the box you'll put it in).

Don't be afraid to use a lot of cardboard and tape! You'll be making your Brompton wider, longer, and taller in dimensions, but the Brompton is so small that you're very unlikely to pad the brompton so much that you get slapped with a oversize luggage fee (generally max 158 cm).

Finally, when I'm satisfied Brompton's vulnerable components are well-covered in cardboard, I wrap it in a sleeping pad. And if I'm traveling with a big (synthetic) winter jacket, I'll cover it with that too

Making the Box

When the Brompton is sufficiently covered in padding, it probably won't fit in any of the cardboard boxes. So I usually open one side of the biggest box until the Brompton fits in it, and then bend a new edge into the cardboard so it fits perfectly.

I may re-bend other walls of this big box so that the box fits the Brompton perfectly.

Then I'll use the remnants of the other couple boxes to build-out a top of the box and reinforce any sides where one sheet of cardboard meets the other. Use just a small bit of tape as you go.

When the box is completed around the Brompton, I write my name and every airport code the box should travel to/through on literally every side of the box. Maybe this is paranoid, but I did arrive to an airport one time and my Brompton did not. Fortunately, it arrived within a couple days. I'm glad it was clearly marked and not lost; checked luggage with this airline was only insured up to $3,000.

After clearly writing your info on the box, tape it up really, really, really well (you want to write the info before this because you can't write on plastic tape). If you built a box by combining multiple boxes together, I can't stress how important it is to use a lot of tape.

Tie it up

The resulting ~20kg box should offer great protection of your precious Brompton, but it'll be large, heavy, and clumsy to carry.

To make this easier, I usually just wrap & tie about 10 meters of paracord around the box, so it's easier for me and the airline workers handle it.

Bonus: The result doesn't look like the contents are very valuable, and I've never had an airline ask me what's inside; the last thing they'd expect is an expensive bicycle.

Alternatively: Suitcase

The first time I shipped a Brompton, I bought a secondhand Samsonite suitcase that was 158 cm (L+W+H).

I still prepared it with the cardboard on the vulnerable parts and it just barely fit inside the suitcase.

This was the last time I shipped the brompton this way, because I didn't want to carry a suitcase with me on a bicycle tour through the desert. But it could be a good option if you're not cycle touring.
