How do I adjust Luxos IQ2 mount?

Question

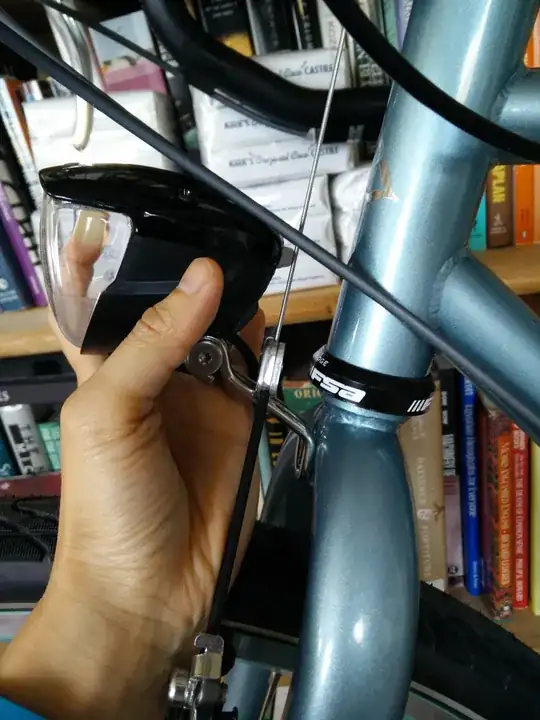

I'm trying to mount Luxos IQ2 onto the fork crown. There isn't quite enough space between the back of the light and front brake cable and I was wondering if I could add a spacer between IQ2 metal bracket and the fork crown. Or would it weaken the stability of the mount?

Luxos IQ2

I believe problem solvers makes products specifically for this purpose. — Batman, Jul 10 '15 at 01:01
Great! I'll look on their site and see if I can find right parts for my bike. — mika, Jul 10 '15 at 03:07
If the mount is not too strong, you can try to make that angle more tight with 2 pliers. — super, Jul 10 '15 at 07:51

score 1 · Answer 1 · answered Jul 10 '15 at 12:10

1

There is not that much load on the light - just add spacers or bend the mount as @super proposed, you'll be fine.

answered Jul 10 '15 at 12:10

chichak

703
3
14

Those mounts are hard to bend. – dlu Jul 15 '15 at 00:22

score 0 · Answer 2 · answered Jul 15 '15 at 00:22

The only problem that you might run into with a spacer is that you'd loose the fit on the curve of the fork, so the light might be little more likely to flop to the side. I would think that a rubber or leather washer would handle that.

You don't need anything as fancy as a purpose built part. Your local hardware store will most likely have box upon box of little bits of odd hardware and among them you can find spacers in various lengths, along with longer bolts if you need them. You might want to get a couple of metal washers as well to provide a solid clamping surface. Or buy the fancy mount…

If I can offer advice where I wasn't asked, you might want to consider mounting the light higher or farther forward. I really don't like the shadow of the front tire that mine casts when it is mounted at the fork crown.
