A runway inspection found a "Land And Hold Short Of" (LAHSO) embedded light had become dislodged and had caused damage to a tyre.

http://avherald.com/h?article=4bb1964c&opt=0

What is such a light, and what does it look like?

See also How are runway lights constructed?

Pondlife
  • 71,714
  • 21
  • 214
  • 410
Daniele Procida
  • 12,858
  • 2
  • 51
  • 94

1 Answers1

5

It's an in-pavement (flush) light bar that indicates the hold-short for the LAHSO operations. See: What is a land and hold short clearance (LAHSO)? For the FAA they are:

FLASHING L-850A OR L-850F LIGHT FIXTURE (Source: AC No: 150/5345-54B)

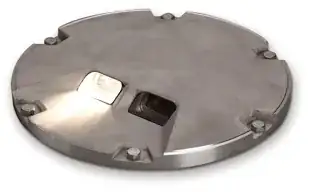

A single L-850F unit in the light bar looks like this:

enter image description here
(adbsafegate.com)

enter image description here

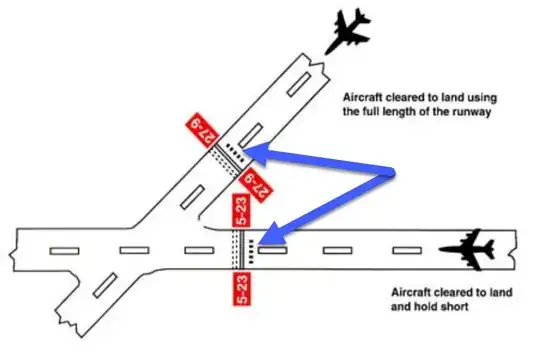

(FAA AIM) The light bars are located as indicated by the blue arrows.

I tried to find a video to show the pulsating white light at night when in use, but I couldn't find any. By checking Boston Logan (KBOS) on Google Earth, and zooming in at where the LAHSO hold-short lines are, the flush light fixtures can be barely seen:

enter image description here
