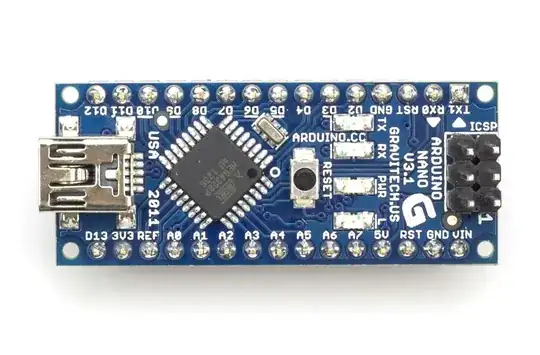

The Arduino Nano is a small board based on the ATmega328 or 168. It has male headers, so it can be plugged directly into a breadboard. It is small and compact, and features a USB chip.
The Arduino Nano is a small board based on the ATmega328 or 168. It has male headers, so it can be plugged directly into a breadboard. It is small and compact, and features a USB chip.
The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x) or ATmega168 (Arduino Nano 2.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one. The Nano was designed and is being produced by Gravitech.
Microcontroller Atmel ATmega168 or ATmega328
Operating Voltage (logic level) 5 V
Input Voltage (recommended) 7-12 V
Input Voltage (limits) 6-20 V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by bootloader
SRAM 1 KB (ATmega168) or 2 KB (ATmega328)
EEPROM 512 bytes (ATmega168) or 1 KB (ATmega328)
Clock Speed 16 MHz
Dimensions 0.73" x 1.70"
(From the Arduino Nano Page.)
