Background:

I need to upgrade the drive in my Macbook Pro. Following are some of its specs:

  • MacBook Pro (17-inch, Late 2011)
  • OS: High Sierra, v 10.13.6
  • HDD: 500 GB SSD, w/ Macintosh HD & BOOTCAMP partitions

The Problem:

I need to upgrade the SSD to 1TB. I can accomplish this by cloning the 500GB drive to the 1TB drive. I will use Disk Utility from the Recovery HD volume to do this since both source and destination volumes in the cloning process will need to be unmounted.

I did this previously when upgrading the original mechanical HDD to SSD, but it was HFS-to-HFS. I quickly reviewed this article to verify nothing had changed. Finding no warnings, cautions or surprises, I began the process:

  • boot with command-R to get into the Recovery HD volume
  • start Disk Utility
  • select Restore option
  • designate source (500GB) & destination (1TB) drives
  • Go!

This ran overnight (many hours). But instead of seeing a "Success" message this morning, I saw an error:

Inverting target volume...
APFS inverter failed to invert the volume - invalid argument
The operation couldn't be completed. (OSStatus error 22.)
Operation failed...

Research on this led me here. I initially concluded Apple had simply not upgraded the Recovery volume or the apps in it, but this proved not to be the case. Here's what I've found:

  • The upgrade to High Sierra converted the 'primary' volume to APFS, but left the Recovery volume as HFS.
  • The version of Disk Utility (DU) in the Recovery volume of my MBP is the same version as DU in my 'primary' High Sierra volume - it was apparently upgraded concurrently with the High Sierra upgrade.
  • Whatever the version of DU in the Recovery volume, the failure I experienced seems rather chronic.

The source disk is a Crucial SSD, a few years old & no known issues; the destination disk as also a Crucial SSD - about a week old. Nevertheless, I have now checked all volumes on both disks with First Aid in DU, and all are reported as "OK".

Based on all the above, I've concluded that my Recovery volume is unreliable and not fit for purpose.

I've found a 3rd party alternative solution, Carbon Copy Cloner. It has now successfully cloned the 500GB drive, and restored that to the new 1TB drive - I am "whole" again :) My questions (at last) are:

  1. Can the Recovery HD volume be upgraded - perhaps by installing a later version of Disk Utility from Mojave or Catalina, or a 3rd party app such as CCC?

  2. Could the Recovery HD volume be converted from HFS to APFS and restored/installed on the internal SSD?

  3. Can a Recovery HD volume be created on a thumb drive which could be made bootable?

Seamus
  • 4,547
  • Carbon Copy Cloner can copy over a Recovery Partition & will ask at the end of the regular cloning process. It will find all potential recoveries & ask you which one. At that point, see if one is High Sierra. If it is, problem solved. If not, let us know. – Tetsujin Mar 18 '20 at 07:54
  • @Tetsujin: I'd not considered that... But if I understand your suggestion, I would need to find the recovery partition that was part of High Sierra. Where would I find that?? – Seamus Mar 18 '20 at 23:15
  • Here's a potential solution, but it seems Apple has removed High Sierra from the App Store. I understand not supporting an older OS, but this feels like something else. – Seamus Mar 19 '20 at 06:12
  • CCC would find it if it exists, or see https://apple.stackexchange.com/questions/309399/how-can-i-download-an-older-version-of-os-x-macos for HS – Tetsujin Mar 19 '20 at 07:36
  • @Tetsujin: Not sure what you mean when you say "CCC would find it...". Also, the Q&A you linked is *awesome* except for one thing: many of the links provided no longer work :( Also pls note the extensive edit to my Q. – Seamus Mar 19 '20 at 10:31
  • All except one link is still absolutely fine. For CCC, read the manual. – Tetsujin Mar 19 '20 at 10:41
  • @Tetsujin: This link to d/l High Sierra doesn't work on Catalina - it asks me to choose an app. The default is "Music", but that doesn't work. The other link I tried that didn't work, seems to work fine now - my apologies. – Seamus Mar 19 '20 at 10:52

2 Answers2

3

I came here because I was looking for solutions about the error you quote, but instead your actual questions at the end of your text are about something else. It would be nice if you'd change your question title accordingly.

To answer your questions about recovery partitions:

  1. If you install, even temporarily, a newer macOS, you should get a newer recovery partition along with it. I, for instance, have a separate 10.14.6 recovery system on one of my Macs (however, I wonder how that came to be, as there's also a Recovery APFS volume insider the container where the Mojave system resides, so why would there also be a HFS+ partition with one?). Be aware that if you install a newer system on your current system disk, it might convert your current system volume from HFS to APFS. To prevent that, install it to a separate partition (though even then I'm not sure that Apple won't simply convert all volumes on the disk to APFS), or best install it to an external disk.

  2. Converting it into APFS is not needed and inadvisible - it would not gain you anything. Basically, the Recovery system is just a small EFI-based loader that'll then load the BaseSystem image into a RAM disk and load the Recovery system from there.

  3. I have copied entire HFS+-formatted recovery partitions to external USB disks, so I assume you could as well copy them onto a USB stick, as long as you format it with a GUID partition scheme first. The copy operation may be tricky, though - ideally, Disk Utility should let you do that with its Restore command - but it turns that that the new Disk Utility won't even show Recovery partitions any more, so that's not an option. The old Disk Utility from pre-10.11 systems may be able to, still.

Here's what still works in my testing on Mojave with Terminal commands to copy a HFS+ formatted Recovery partition to an USB thumb drive (with GUID partition scheme):

asr --source /dev/diskVsW --target /dev/diskXsY --erase

Where diskVsW and diskXsY are the identifiers for the source and dest Recovery partitions that you'll find with diskutil list.

You could also use hdiutil to create an image file of another Mac's recovery partition and then later restore that with Disk Utility.

Also keep in mind that modern Macs can always load a recovery system from the internet, so there's no need to keep one around for them.

Thomas Tempelmann
  • 1,842
  • Your opening paragraph is a fair comment... If you read my edits to the question you may get a sense of what happened during the course of my efforts to recover from the original error - i.e. the error described in the Subject line. But for me, the questions at the end simply follow from my conclusion: "my Recovery volume is unreliable and not fit for purpose.". I feel that conclusion is justified because the "Recovery Partition" did not provide any Recovery. And so, IMHO, the subject is still relevant as it is the error that led to what followed. [continued] – Seamus Apr 14 '20 at 20:51
  • For me - at least in this case - "the answer" to OSStatus Error 22 was to ditch Apple's Recovery Volume, and use the 3rd party tool Carbon Copy Cloner. That said, I do appreciate your answer, and will take that information on board. :) – Seamus Apr 14 '20 at 20:57
1

A simple easier way to do this without any third party tools or Apple-created apps is to use the Unix dd command, as shown.

First you will want to locate the the Old SSD's Disk ID. You can find this in the Disk Utility. Click on your Old SSD from the drop down. I am on macOS Sonama, so it isn't there for me but for you it should appear at the top in the Internal drive section.

This Disk Image I'm using in the screenshots is just an example

this is an example

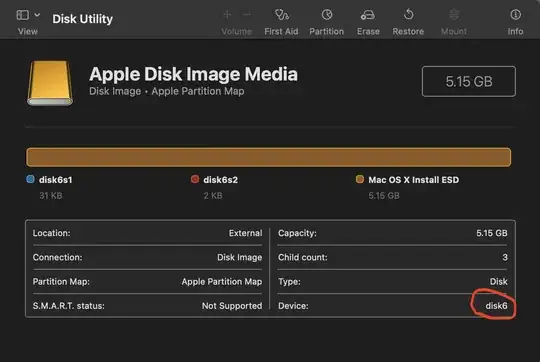

Now locate it, once you select it it should be here inside the circle:

/dev/location

If the location is similar to diskXsY, do not include everything from the 's' including itself. Examples:

disk1s2 --> disk1

disk3s4 --> disk3

Repeat this process except for the 1TB SSD.

Now that you've got the two IDs, this is how to create the copy.

NOTE: In commands, when you see {new ssd} or {old ssd}, replace them with the IDs obtained earlier.

Step 1: Unmount both SSD's, without ejecting them.

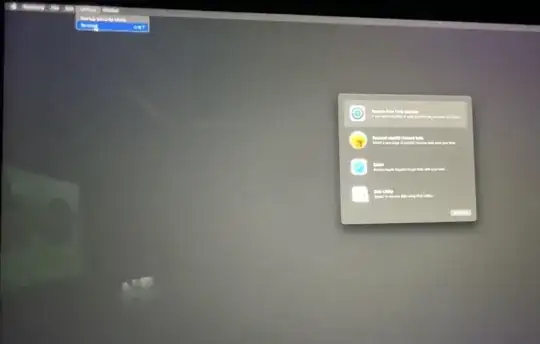

opening the terminal

Picture credit: https://www.youtube.com/watch?v=8aZOsErG1XI&t=65s

Open the Terminal, which should be accessible via the top bar in Recovery Mode as shown in the picture, and type these commands:

diskutil unmountDisk /dev/{old ssd}

Press enter. This will unmount your old SSD.

Now we will unmount your new one.

diskutil unmountDisk /dev/{new ssd}

Now, finally, do the following command. This will begin the cloning process.

dd if=/dev/{old ssd} of=/dev/{new ssd} bs=1m

If that command gives an error, try this one (which will require a password):

sudo dd if=/dev/{old ssd} of=/dev/{new ssd} bs=1m

This will, 1 megabyte at a time, copy over contents from your old drive to your new drive. You should end up with byte-for-byte perfectly identical copies!

two identical disks on a desktop, one virtual one physical

Now, remount the drives, using the opposite of the commands I used before:

diskutil mountDisk /dev/{old ssd}

This command will re-mount your older SSD.

And this command will remount your new one.

diskutil mountDisk /dev/{new ssd}

Now close Terminal and open Disk Utility. You should have exactly identical drives, partitions and all.

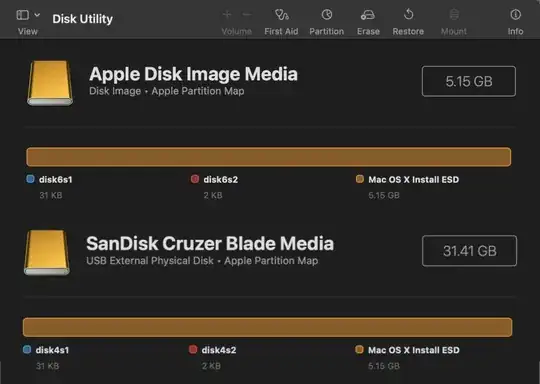

Take a look:

two identical drives

It should look something like this. This works for almost any drive and perfectly clones the entirety of them.
